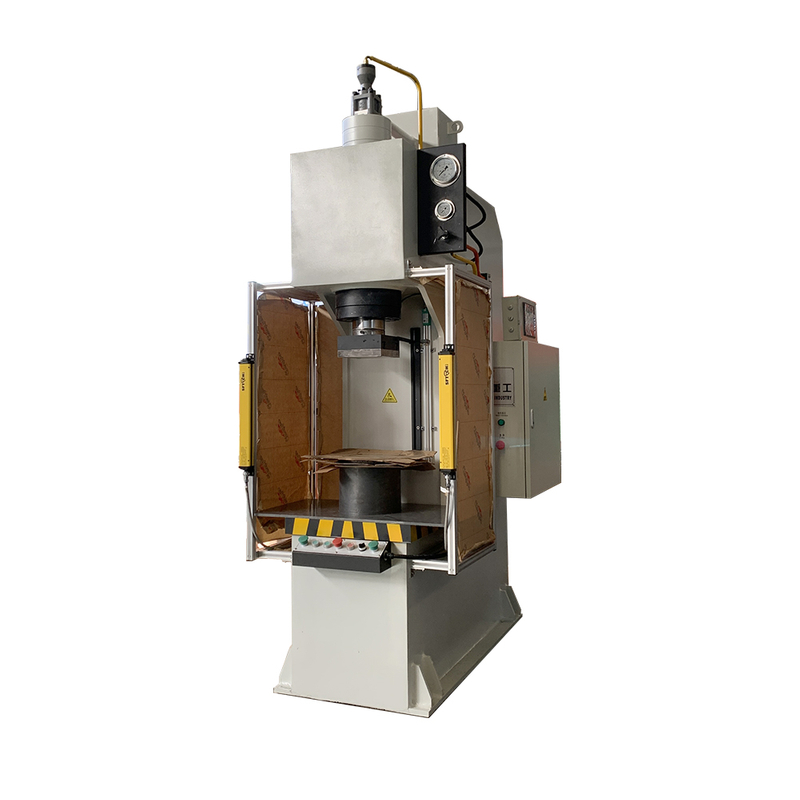

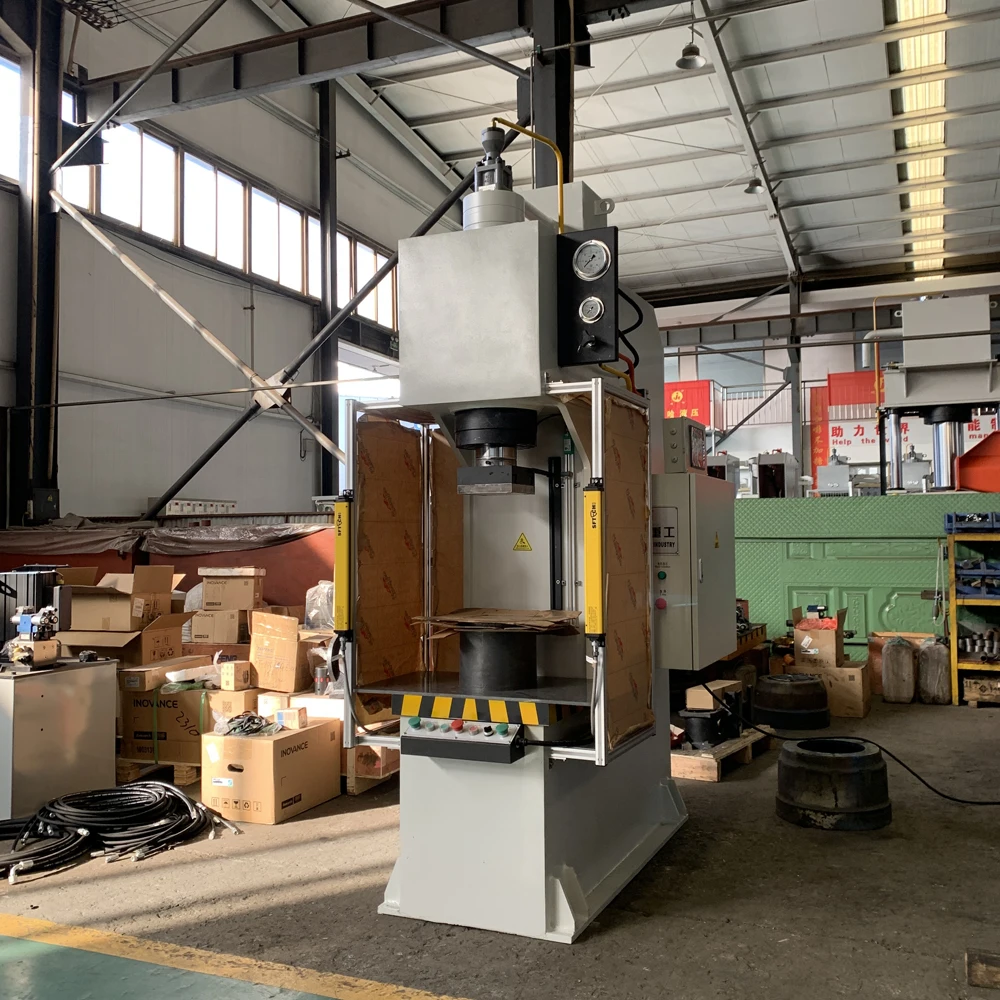

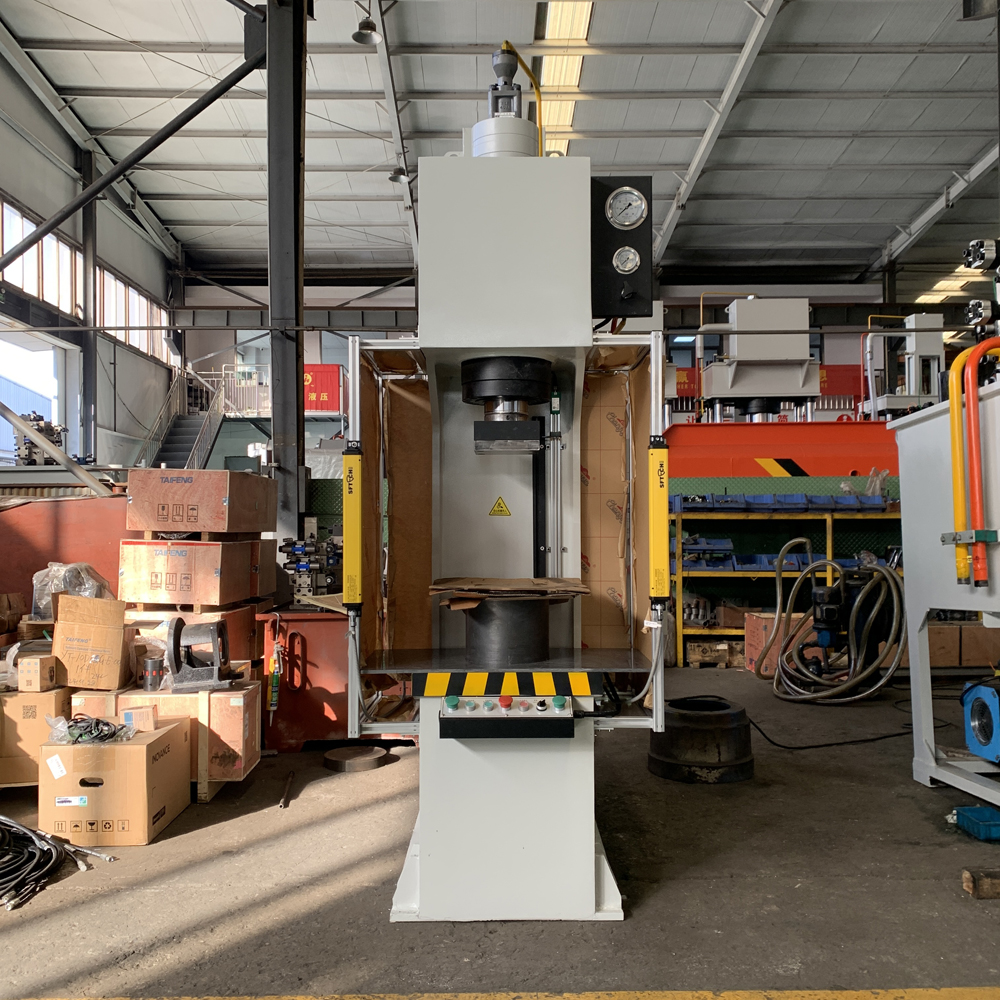

50T C Type Single Column Hydraulic Press Machine with PLC and Motor for Automobile Metal Bending & Stamping

The 200T Ceramic Powder Forming Hydraulic Press is a state-of-the-art industrial solution engineered for the precise and efficient production of high-quality ceramic components. Built on a robust four-column, three-beam structure, this press delivers a maximum forming force of 200 tons, making it ideal for compressing a wide range of ceramic powders into dense, dimensionally accurate parts. Whether you are manufacturing technical ceramics, ceramic tiles, or advanced ceramic components, this machine provides the reliability, precision, and versatility required to meet modern production demands.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button
  • Y41-50T

  • JIANHA BAOFA

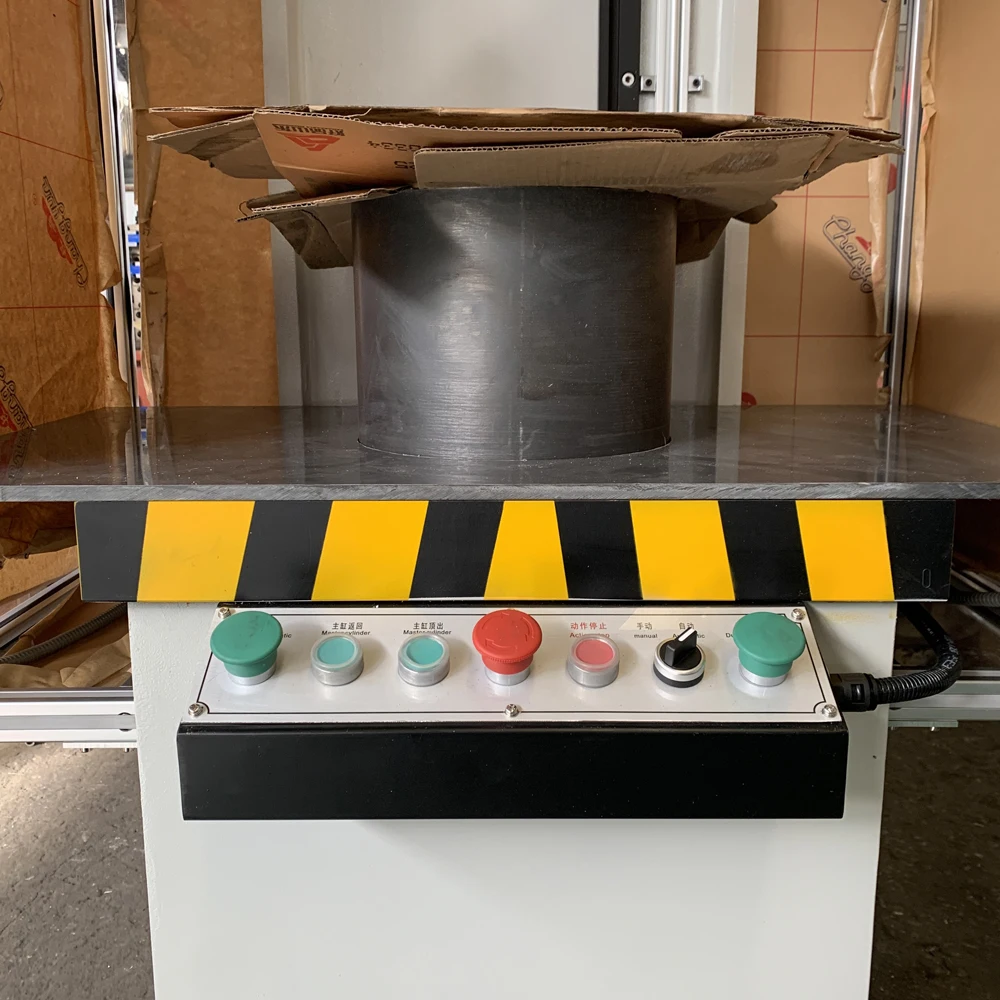

   This series of machine tools can be used for shafts and other similar calibration processes, for pressing and assembling of shafts and sleeves, as well as for stretching,forming and blanking of simple formats. This series of machine tools are operated by pedal linkage, which is simple to operate. Hydraulic press has been equipped with electronic hydraulic reversing valve or cartridge valve, which bears the characteristics of compact, safe, reliable, sensitive in action, fast speed, low energy consumption and low noise.

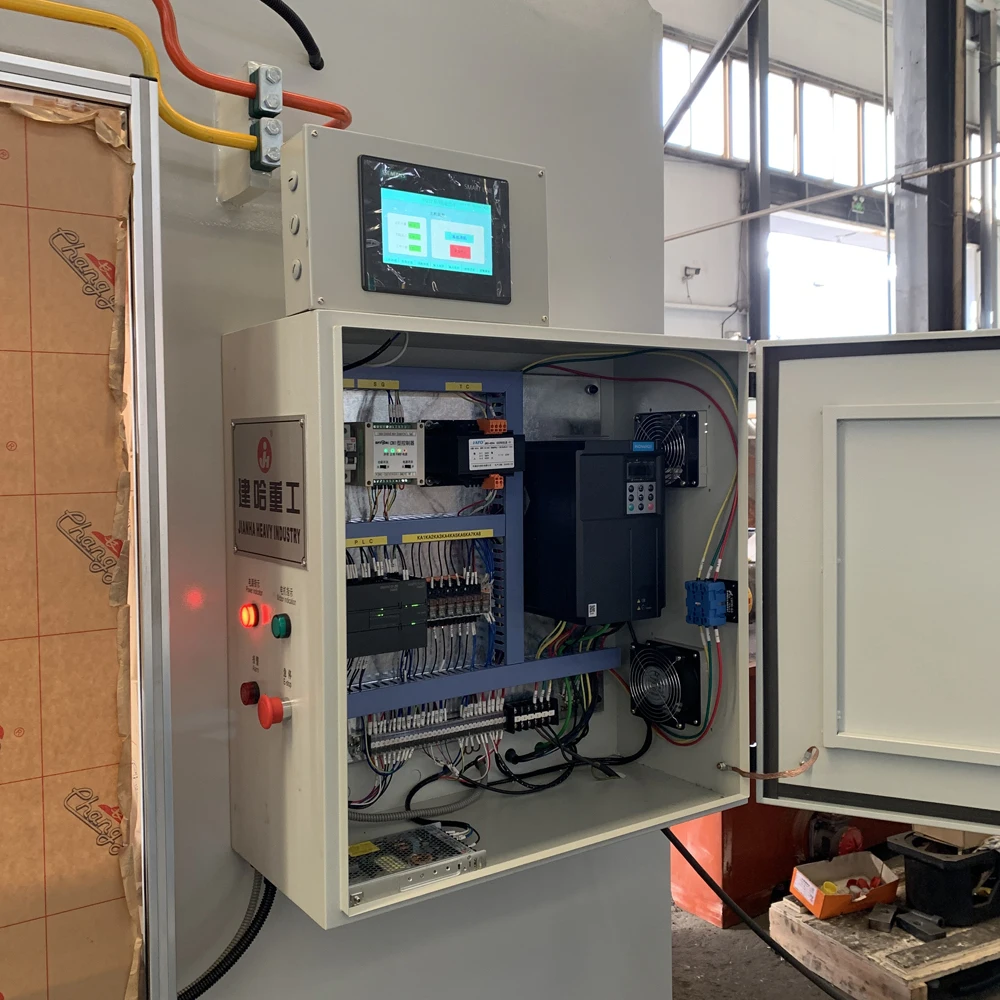

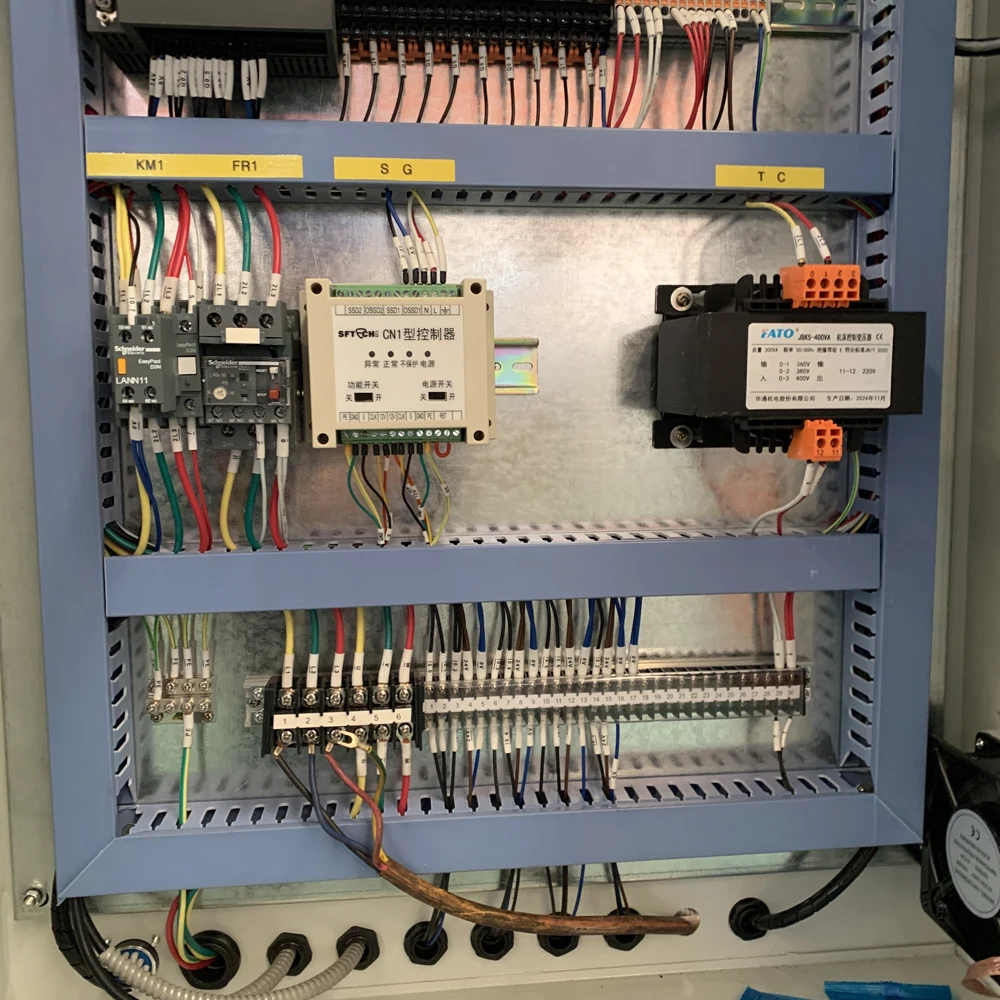

ELECTRICAL ACCESSORIES
Schneider is used for electrical, safe and reliable distribution board with clear lines,and electrical schematic diagrams are provided when delivery,so that customers can use it more  comfortably and worry-free.

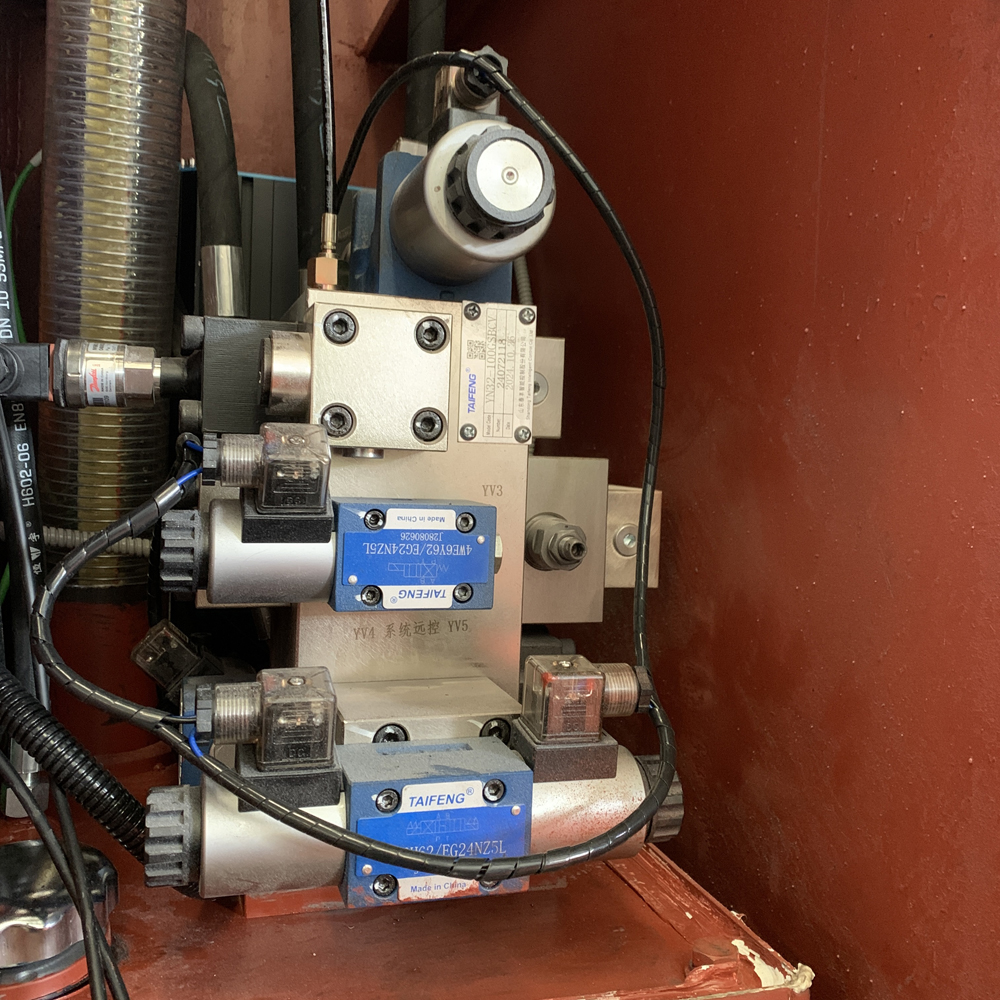

CARTRIDGE VALVE SYSTEM
The two-way plug-in valve controls the flow direction and pressure of hydraulic oil, reduces leakage points, and operates reliably and with stable pressure.

TOUCH SCREEN
A control display screen is installed outside the electric box, the English interface can be adjusted. Siemens PLC (Programmable Logic Controller) has the characteristics of high reliability, flexibility, and programmability, and can achieve precise control and monitoring of various industrial production processes.
All the products shown above are manufactured by our company.

50T
63T
15T
Nominal pressure(KN)
500
630
150
System pressure (Mpa)
25
25
20
Maximum opening of indenter(mm)
710

650
Effective stroke of slider(mm)
500
450
400
Effective size of table(mm)
Right and left(mm)
550

400
Front and back(mm)
460

400
Throat deepth(mm)


200
Effective size of indenter(mm)



Indenter velocity(mm/s)
Press head fast down speed(mm/s)
50-240
30-120
15-50
Press head feeding down speed(mm/s)
10-35


Press head return speed(mm/s)
40-160
30-100
30-100
Motor power(kw)
13
7.5(servo)
5.5(servo)


Difference



Company Profile

Shandong Jianha Baofa Heavy Industry Machinery Co., Ltd.

Our factory is located in Tengzhou City, Shandong Province, China, which is a leading center for hydraulic press manufacturing in China. It was established in 1996,has a factory area of over 7,000 square meters, with fixed assets exceeding 30.1 million yuan and a staff of over 106 people, including 36 R&D technicians. We firmly believe that only by constantly innovating can enterprises achieve sustainable development; and only by grasping the needs of customers can they lead the industry trend.  Our main ODM customized products include hydraulic presses, rotating shaft presses, die-casting machines, CNC lathes, etc. The annual export volume exceeds 300 units, and the export business covers more than 60 countries. We always adhere to the concept of "quality first and reputation foremost", continue to develop and achieve significant progress, and have won a good reputation among customers.


Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


FAQ

Q1 How can I choose the most suitable machines ?

A1 Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

Q2 What's your main products of your company?

A2 We specialized in all kinds of machines ,such as Hydraulic Press Machine,CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

Q3 Where is your factory located? How can I visit there?

A3 Our factory is located at 1299 Tengfei Road, Tengzhou City, Shandong Province, China. You are warmly welcome to visit.

Q4 What's the Payment Terms ?

A4  T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable L/C at sight .
