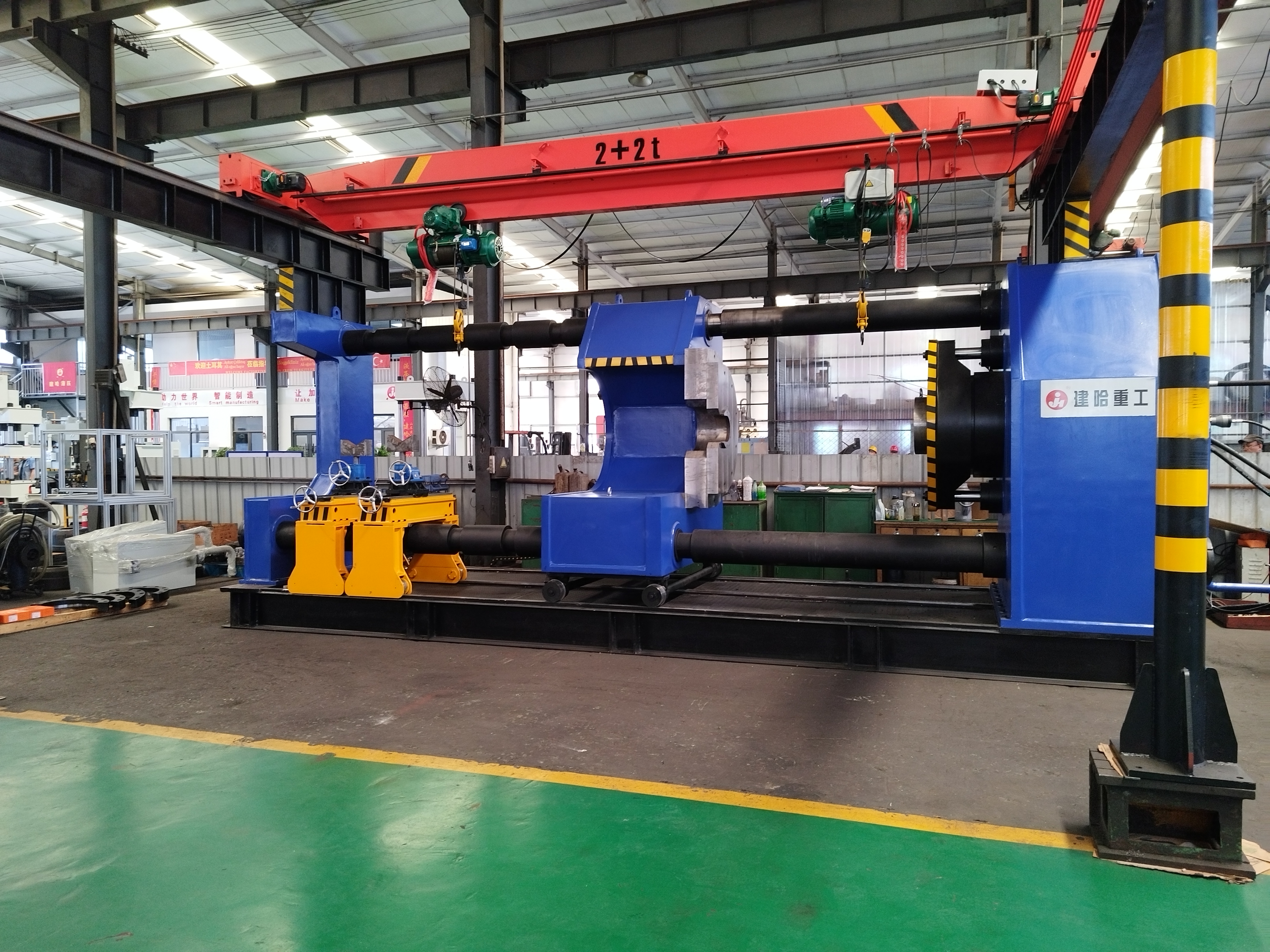

Horizontal Hydraulic Wheel Press Machine
The Machine is designed according to the requirements of users,used for pressing the interference fit wheel and shaft;it can also be used to disassemble the axle that has been pressed.Other types of parts can also be pressed with different molds.The machine is equipped with some tooling and molds according to the wheelset pressing parts drawing provided by the user.

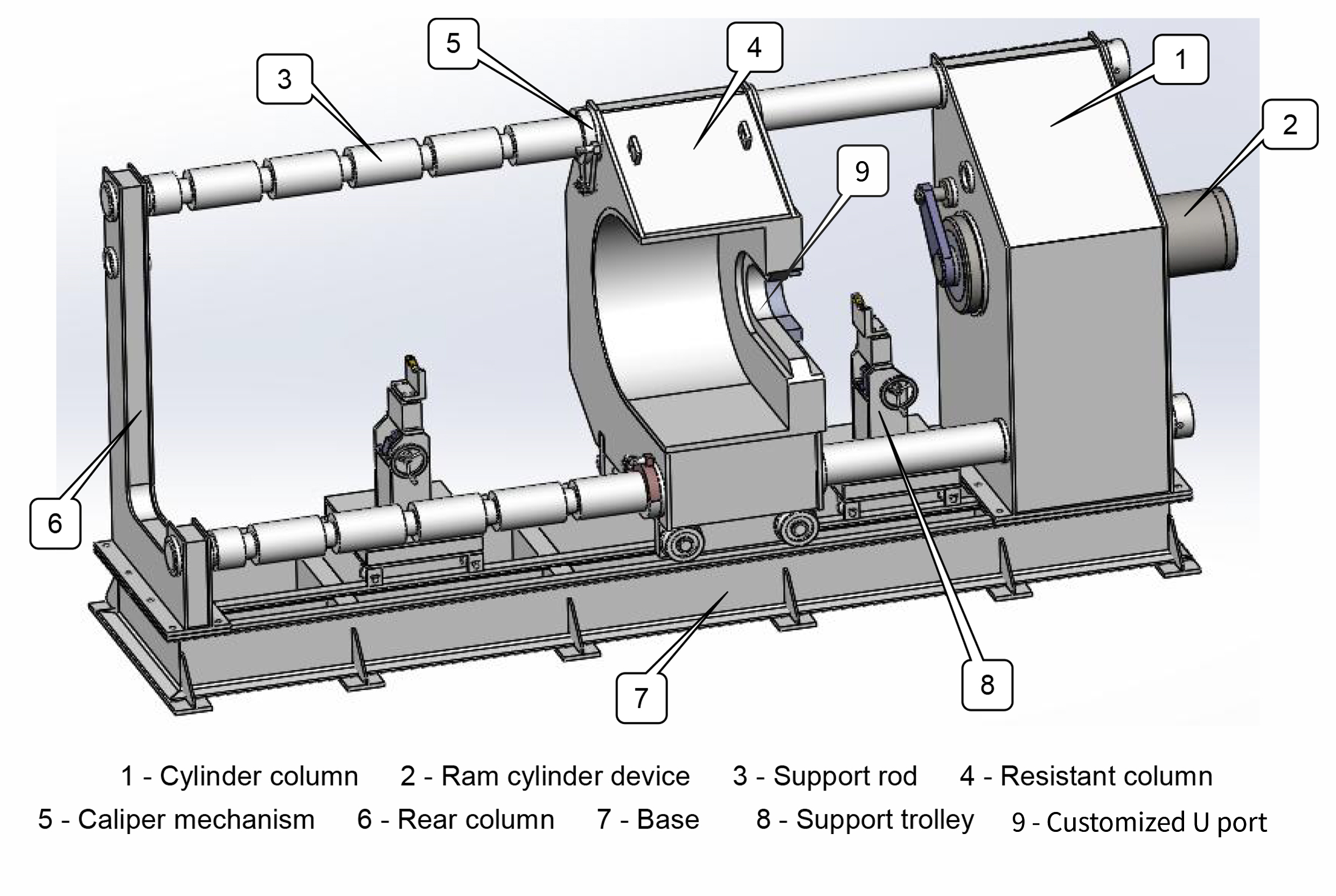

Horizontal Hydraulic Wheel Press Machine Structure and Main Parts
The wheel axle press-fitting machine, as a key equipment used for wheel axle assembly in the industrial production field, is widely applied in industries such as automotive manufacturing, rail transportation, and construction machinery. Its core value lies in achieving efficient and reliable assembly of wheel axle components through precise pressure control and stable operation procedures. In the following, we will provide a detailed analysis of the wheel axle press-fitting machine from the aspects of its functions and advantages：
(1) Precise Pressing Operation
This is the most fundamental and core function of the wheel axle pressing machine. The equipment, driven by hydraulic or servo drive systems, can assemble components such as wheels and bearings with shaft parts in interference fit according to preset pressure and displacement parameters. For example, in the assembly of car wheel hubs, the pressing machine can set pressure values within the range of 0-500kN based on the size and assembly requirements of different vehicle models, ensuring that the fit gap between the hub and the half shaft complies with industry standards (typically with an error of no more than 0.02mm), avoiding abnormal running noise caused by loose assembly or component damage due to tightness. Additionally, some high-end equipment supports multi-stage pressing mode, which can automatically adjust the pressure speed during the pressing process, such as low-speed positioning in the initial stage, uniform pressure application in the middle stage, and slow pressure retention in the final stage, further improving the assembly accuracy.
(2) Real-time Monitoring and Data Feedback

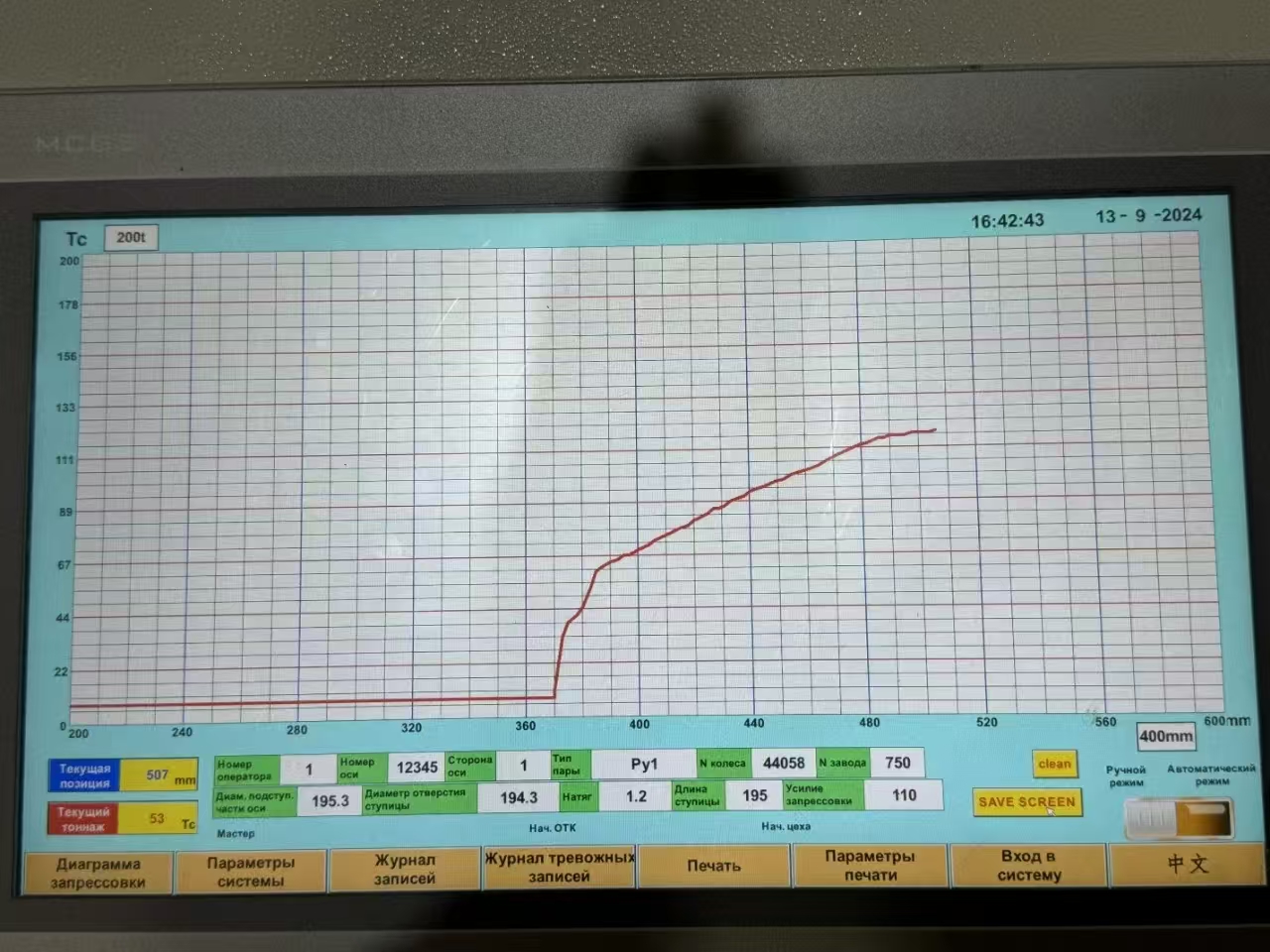

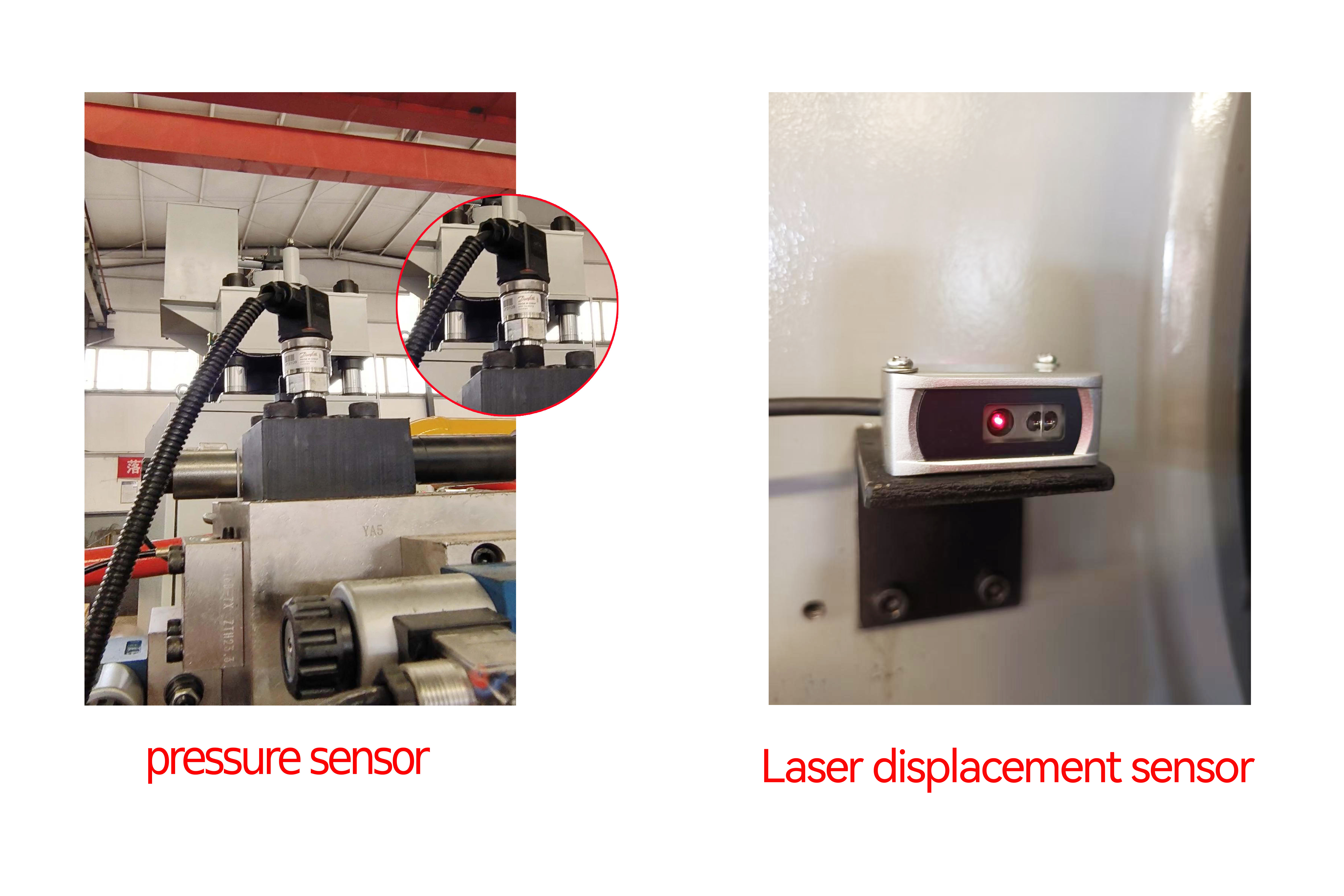

Modern wheel axle pressing machines generally integrate high-precision sensors (such as pressure sensors and displacement sensors) and data acquisition systems, which can monitor key parameters during the pressing process. On one hand, sensors can capture real-time pressure change curves and displacement travel. When the pressure exceeds the preset threshold (such as sudden pressure increase due to component size deviation) or the displacement exceeds the normal range, the equipment will immediately trigger an alarm and stop the operation to prevent substandard assembly. On the other hand, the equipment will automatically record the complete data of each pressing operation (including peak pressure, pressing time, displacement deviation, etc.) and generate traceable reports, facilitating quality control and problem traceability for enterprises. For example, in the rail transportation field, the pressing data of each set of train wheel axles will be uploaded to the enterprise MES system. If there are subsequent wheel axle failures, the historical data can be used to quickly identify problems in the assembly process.
In large-scale wheel and axle assembly scenarios in industries such as automotive manufacturing, rail transportation, and heavy machinery, wheel and axle press-fitting machines often need to work in conjunction with cranes (such as bridge cranes and gantry cranes). The core of their collaboration lies in resolving the connection issue between "heavy object transportation" and "precise assembly" - the crane is responsible for transporting the heavy wheel and axle components (such as train wheels with a diameter of over 1 meter and engineering machinery hubs weighing over 500 kg) to the press-fitting machine position and assisting in positioning, while the press-fitting machine completes the high-precision press-fitting operation, forming an efficient "transportation - positioning - assembly" closed-loop operation.
