Customizable 800-ton Powder Molding Hydraulic Press for Making Salt Bricks and Cattle and Sheep Lick Bricks

The 800-ton powder molding hydraulic press is used to produce salt bricks for cattle and sheep. It adopts a four-beam four-column frame design to ensure pressing stability and anti-offset load capacity.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button
  • Y79-800T

  • JIANHA

(6)

Product Description

场景图


(1)

   产品图_1        (3)        产品图1

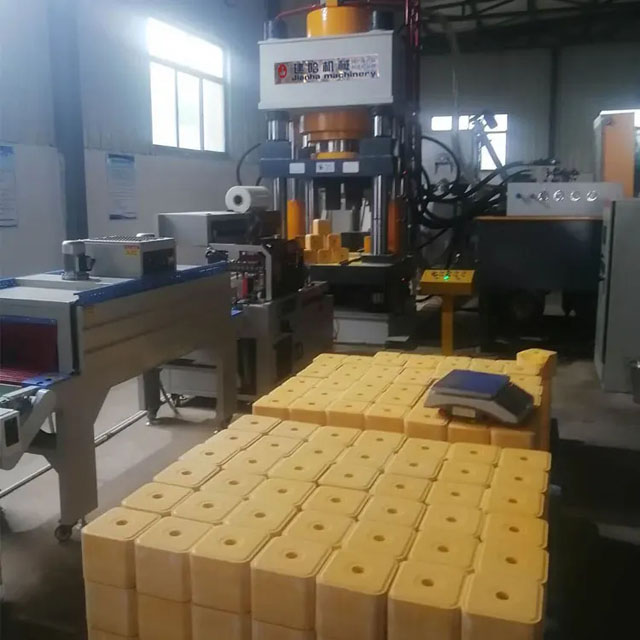

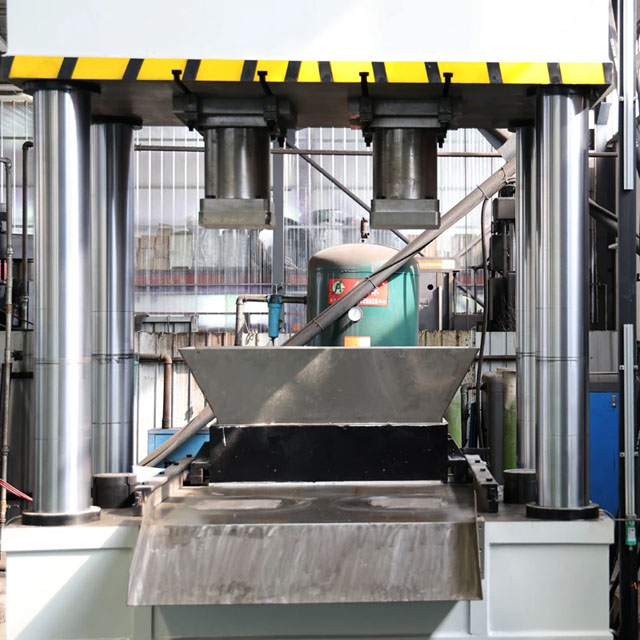

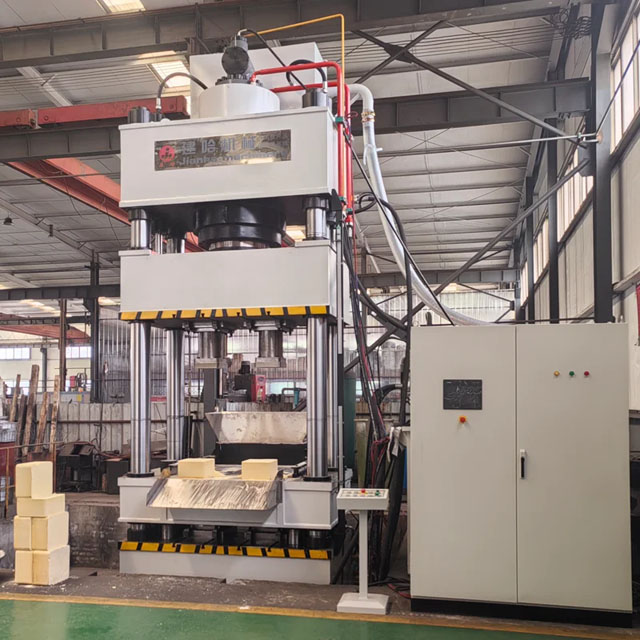

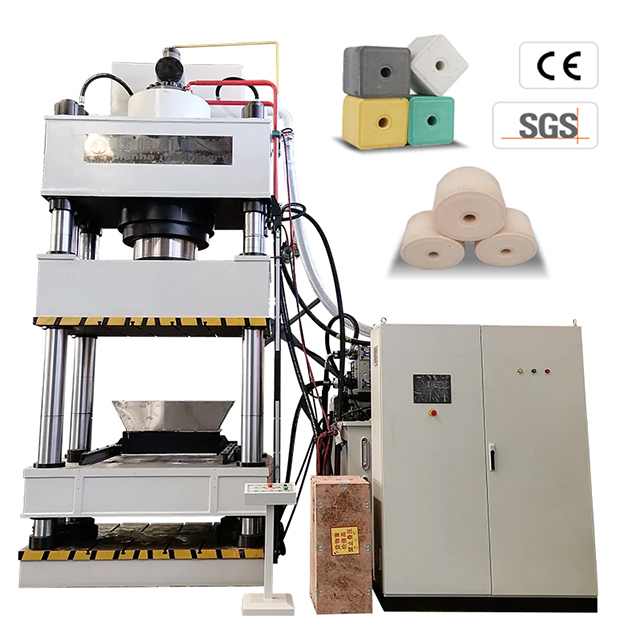

The 800-ton powder forming hydraulic press is used to produce salt bricks for cattle and

sheep. It adopts a four-beam four-column frame design to ensure pressing stability and

anti-offset load capacity. It is equipped with a pull-down demolding system with strong

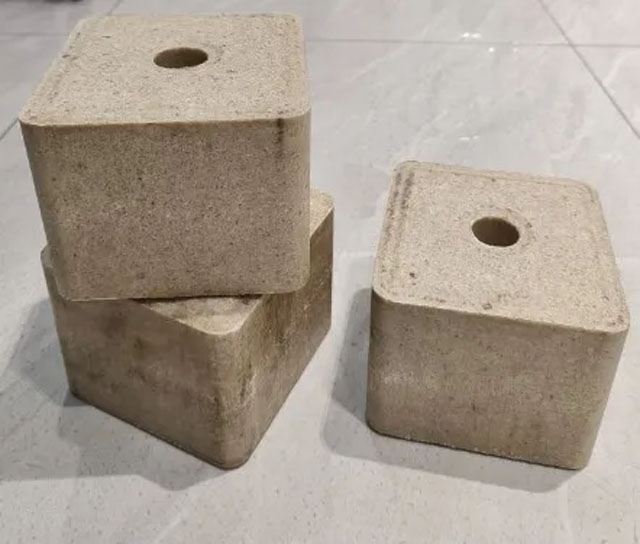

demolding power, suitable for forming salt bricks with central holes or irregular shapes.


(2)

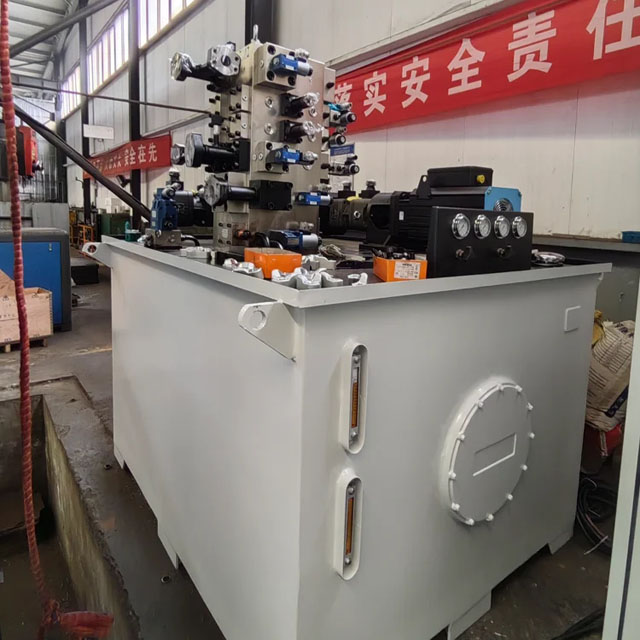

We use Fengtai hydraulic stations, and the servo hydraulic system consumes 30%-60%

 less energy than traditional models. Power consumption during the pressure maintenance

stage is only 1%-10% of the rated power.

(4)

Hydraulic press grating sensors use optical principles to provide safety protection

during equipment operation.

Nominal pressure(KN)8000
System pressure (Mpa)                                 25
Maximum opening of indenter(mm)                              1200
Effective stroke of slider(mm)                              1100
Maximum demolding force of floating mold frame(KN)                              3200
Effective stroke of floating mold frame(mm/s)                               610
Maximum flow rate of hydraulic system(L/min)                               600
Motor power(kw)                              48*2


客户现场图300k未标题-1

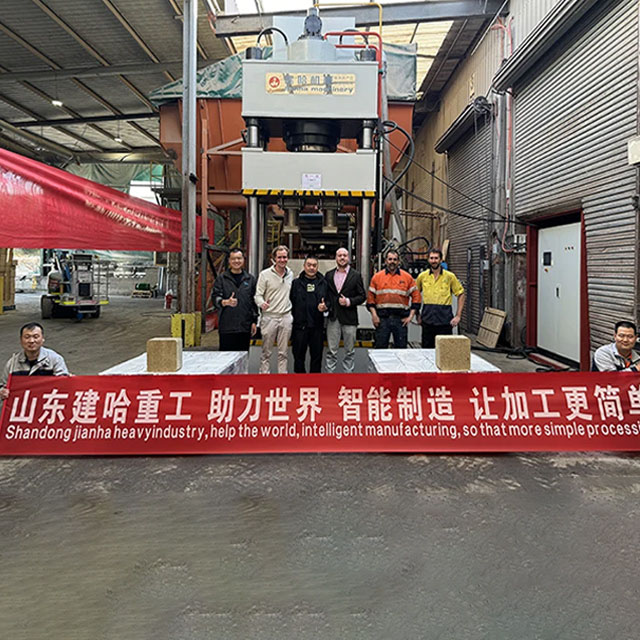

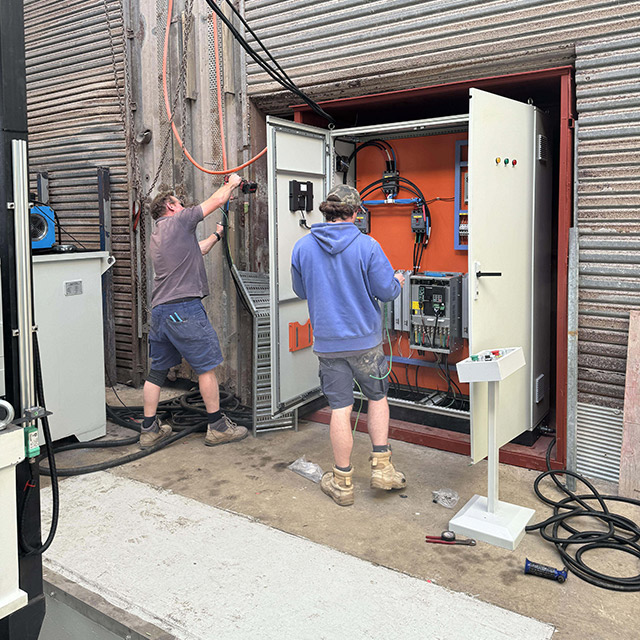

Installation on site in Australia
