Hydraulic Press Machine for Animal Mineral Block 500 Ton
The hydraulic press used for producing animal salt bricks is a powder molding hydraulic press specifically designed for livesstock salt bricks(lick bricks).
The core adopts a four column four beam structure,and uses high pressure to mold salt and mineral powder.
It has the characteristics of high efficiency,stability,and strong adaptability.
The following will provide detailed explanations from the core elements,technical selection,process adaptation,and maintenance points:
Core structure and Components:
Mainframe:four column four beam(upper crossbeam,slider,movable worktable,base)+main cylinder+push out cylinder+mold system(mold frame,punch)+movable worktable(optional),the boday is welded and quenched or made of cast steel to ensure rigidity and anti deformation ability.
Hydraulic system:Motor +variable pump/servo pump+stacked valve block+cooling and filtering unt,supports bidirectional floating pressure,ensuring uniform density inside and outside the salt bricks .
Electrical control system:PLC+HMI screen+sensors(pressure/displacement/temperature),realizes full process automation of feeding,pressure application,holding pressure,demolding and conveying and parameter can be monitored and adjusted in real time.

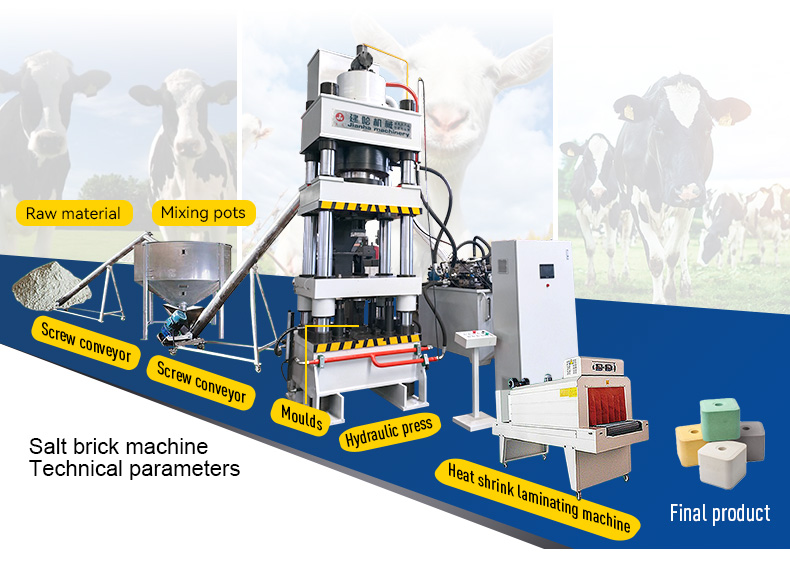

Auxiliary units:automatic feeder,finished product conveyor,mold quick replacement device,suitable for batch production of multiple specifications of salt bricks.
Key equipment selection points:
Hydraulic press:Preferentially choose servo driven models,which have high pressure control accuracy and signficant engergy saving efforts;
Distributing machine:Use spiral distribution or vaccuum suction method to avoid raw material bridging;the hopper need to equipped with a costant temperature and moisture absorption and caking
Drying machine:Adopt closed loop hot air drying ,with heat recovery to reduce energy consumption;the exhaust gas needs to be treated to avoid salt dust pollution.
