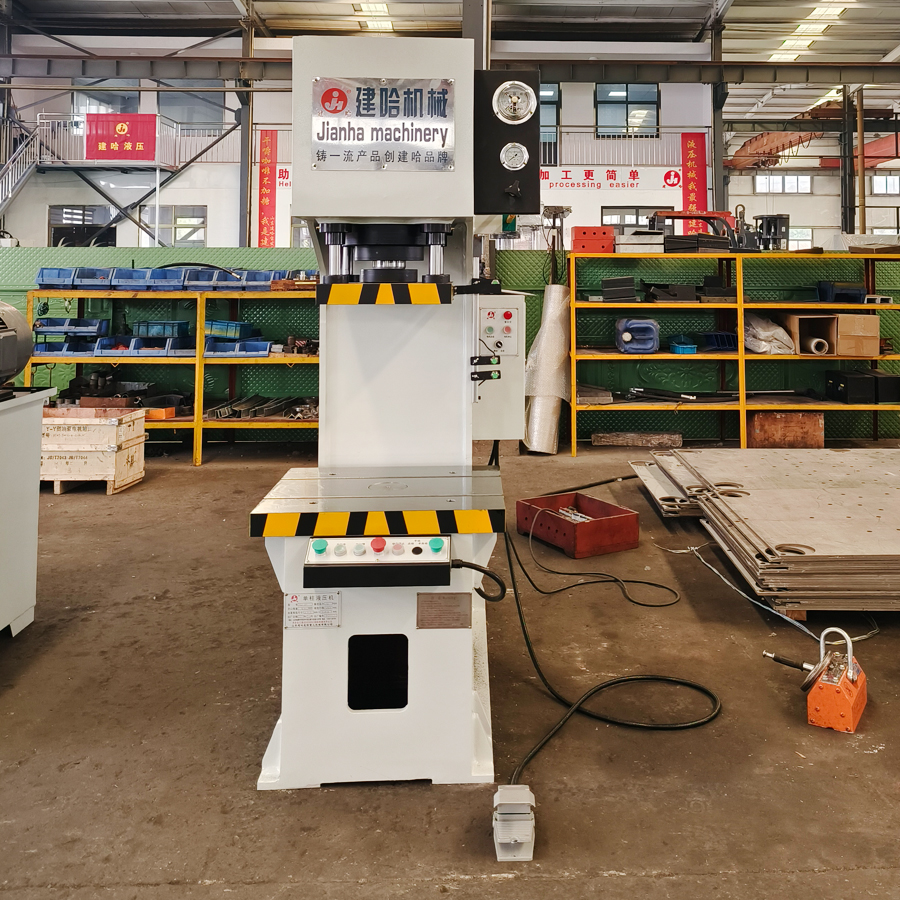

Frame: Constructed from high-grade cast iron or heavy-duty steel plate, the frame undergoes stress-relief treatment to ensure long-term stability and minimal deflection under full 30-ton load.
Hydraulic System: A high-performance system powered by a reliable motor and pump, with precision cartridge valves for efficient flow control. The system is housed in an integrated tank, ensuring clean operation and easy maintenance.
Worktable: A precision-machined steel worktable with T-slots for quick and secure workpiece clamping. Its flat, hardened surface provides a stable platform for accurate forming operations.
Electrical Control Cabinet: A well-organized, modular cabinet housing contactors, relays, circuit breakers, and a PLC (or relay logic) for precise cycle control. It includes safety features like emergency stop and overload protection.
Actuating Cylinder: A heavy-duty main cylinder, designed for smooth, consistent force application, with adjustable stroke and speed to suit different production requirements.
Exceptional Rigidity: The C-frame design delivers outstanding stability, ensuring consistent precision even under heavy loads, which is critical for high-quality forming results.
Superior Accessibility: The open single-arm structure provides unobstructed access to the work area, simplifying workpiece loading/unloading and die changes.
Compact Footprint: Its space-saving design is ideal for workshops with limited floor space, without compromising on performance.
Precision Control: The advanced hydraulic and electrical systems enable precise adjustment of pressure, speed, and stroke, ensuring repeatable, high-quality production.
Versatility: Capable of performing a wide range of operations, including stamping, bending, riveting, assembly, and more, making it a versatile addition to any production line.
User-Friendly Operation: Intuitive controls and ergonomic design reduce operator training time and fatigue, while integrated safety features ensure a secure working environment. Durability & Maintenance Advantages
Long Service Life: High-quality components and a wear-resistant worktable ensure the press can withstand heavy, continuous industrial use.
Low Maintenance: The modular design of the hydraulic and electrical systems simplifies routine maintenance and troubleshooting, minimizing downtime and operational costs.
Energy Efficiency: An optimized hydraulic system reduces energy consumption, lowering operational costs and contributing to a more sustainable production process.
