Y41-30T PLC-controlled Pressure Vessel Mini Bending Correction and Stretching Desktop Hydraulic Press with Servo System

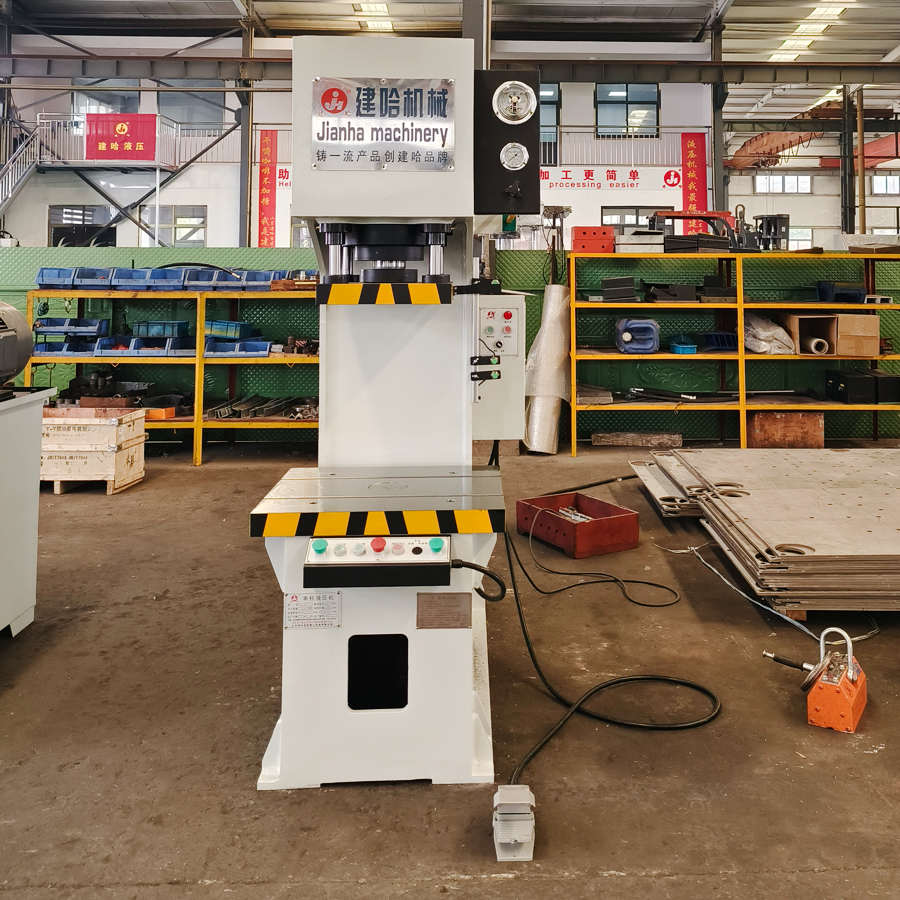

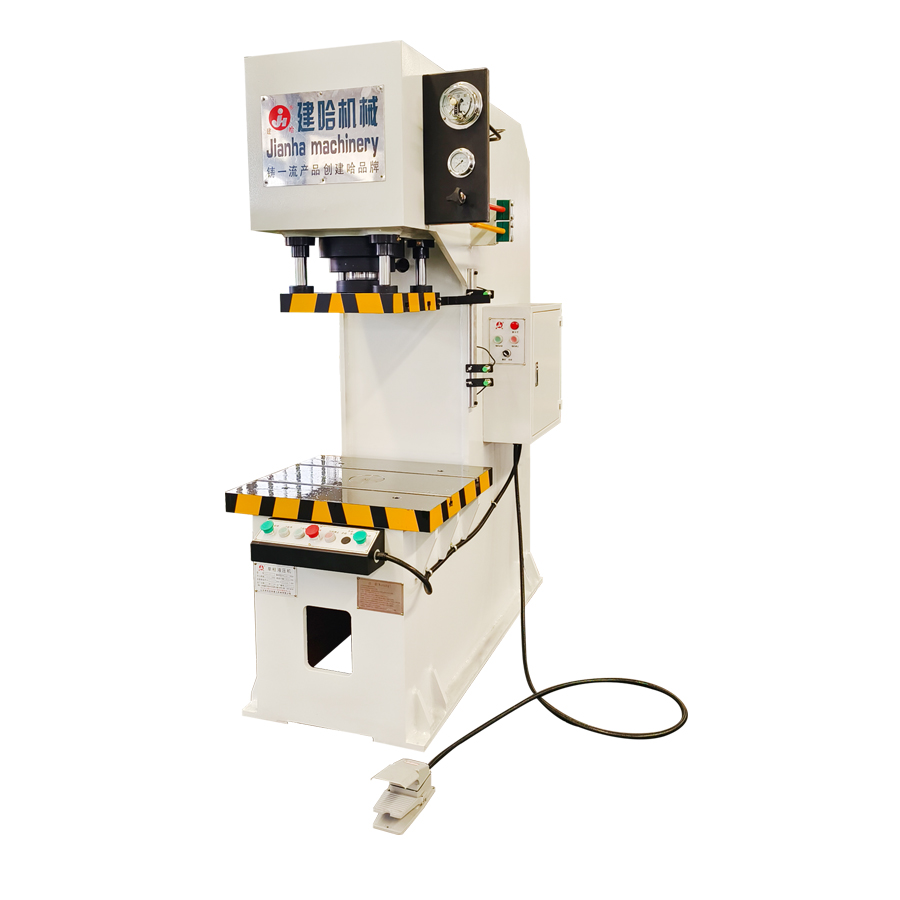

The 30T single-arm hydraulic press features a robust C-frame (single-arm) structure, designed for optimal rigidity and accessibility.
  • Frame: Constructed from high-grade cast iron or heavy-duty steel plate, the frame undergoes stress-relief treatment to ensure long-term stability and minimal deflection under full 30-ton load.

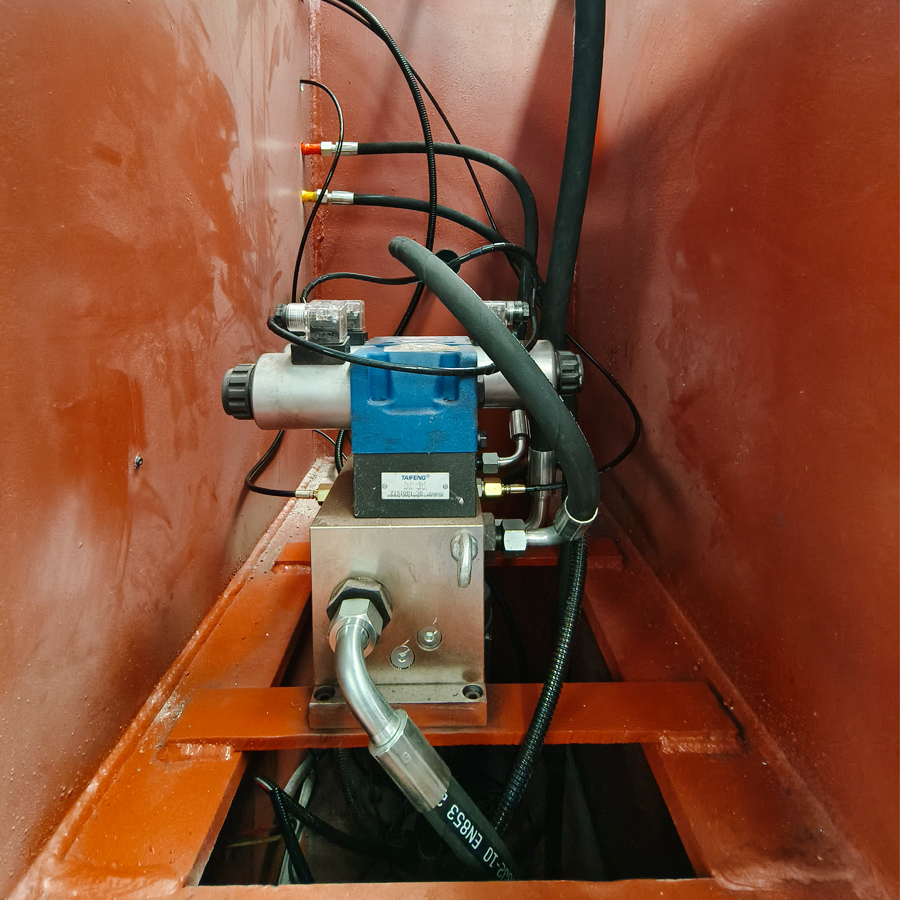

  • Hydraulic System: A high-performance system powered by a reliable motor and pump, with precision cartridge valves for efficient flow control. The system is housed in an integrated tank, ensuring clean operation and easy maintenance.

  • Worktable: A precision-machined steel worktable with T-slots for quick and secure workpiece clamping. Its flat, hardened surface provides a stable platform for accurate forming operations.

  • Electrical Control Cabinet: A well-organized, modular cabinet housing contactors, relays, circuit breakers, and a PLC (or relay logic) for precise cycle control. It includes safety features like emergency stop and overload protection.

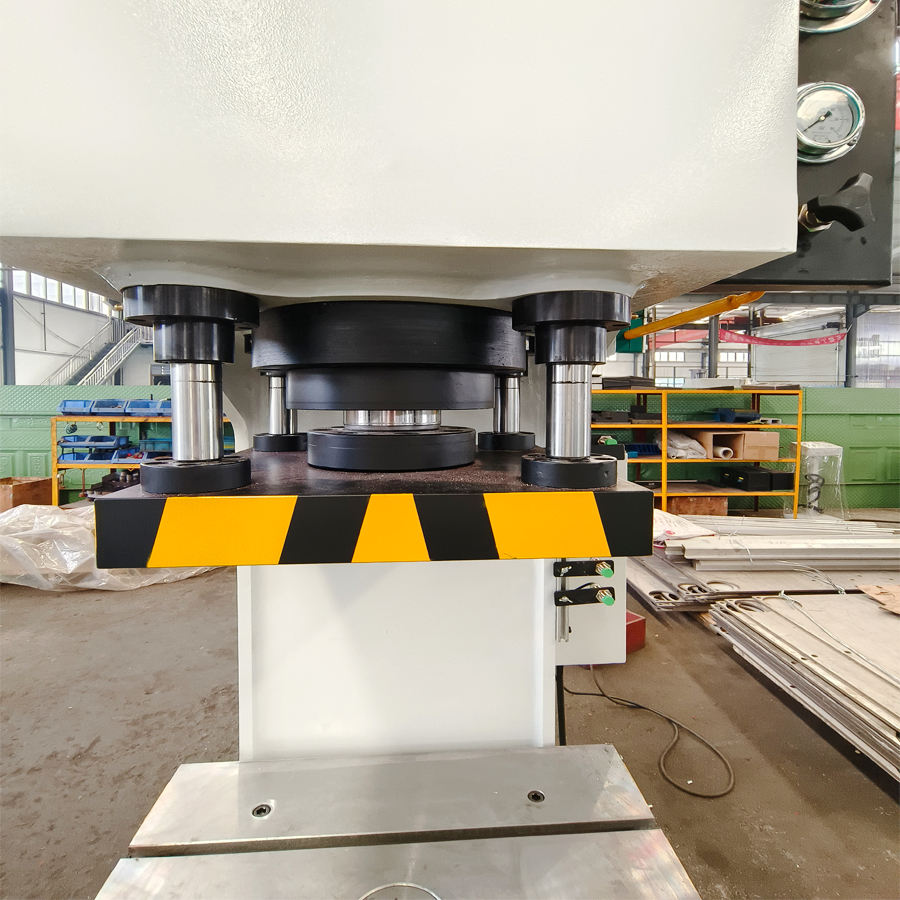

  • Actuating Cylinder: A heavy-duty main cylinder, designed for smooth, consistent force application, with adjustable stroke and speed to suit different production requirements.

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button
  • Y41-30T

  • JIANHA BAOFA

Product Description

Main application of Single column hydraulic press:

This series of machine tools can be used for shafts and other similar calibration processes,for pressing and assembling of shafts and sleeves,as well as for stretching,forming and blanking of simple formats.
This series of machine tools are operated by pedal linkage,which is simple to operate.Hydraulic press has been equipped  with electro-hydraulic reversing valve or cartridge valve,which bears the characteristics of compact,safe,reliable,sensitive in action,fast speed ,low energy consumption and low noise.
CE Certification
Specification

Technical parameters
Y41-30T
Nominal pressure(KN)
300
Maximum opening height(mm)
580(customized)
Effective stroke of press head (mm)
350(customized)
Effective size of worktable(mm)
680*580(customized)
Throat depth(mm)
300(customized)
Descending speed(mm/s)
8-25
Return speed(mm/s)
50
Motor power(KW)
7.9

Difference



Company Profile

Shandong Jianha Baofa Heavy Industry Machinery Co., Ltd.

Our factory is located in Tengzhou City, Shandong Province, China, which is a leading center for hydraulic press manufacturing in China. It was established in 1996,has a factory area of over 7,000 square meters, with fixed assets exceeding 30.1 million yuan and a staff of over 106 people, including 36 R&D technicians. We firmly believe that only by constantly innovating can enterprises achieve sustainable development; and only by grasping the needs of customers can they lead the industry trend.  Our main ODM customized products include hydraulic presses, rotating shaft presses, die-casting machines, CNC lathes, etc. The annual export volume exceeds 300 units, and the export business covers more than 60 countries. We always adhere to the concept of "quality first and reputation foremost", continue to develop and achieve significant progress, and have won a good reputation among customers.


Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


FAQ

Q1 How can I choose the most suitable machines ?

A1 Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

Q2 What's your main products of your company?

A2 We specialized in all kinds of machines ,such as Hydraulic Press Machine,CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

Q3 Where is your factory located? How can I visit there?

A3 Our factory is located at 1299 Tengfei Road, Tengzhou City, Shandong Province, China. You are warmly welcome to visit.

Q4 What's the Payment Terms ?

A4  T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable L/C at sight .
