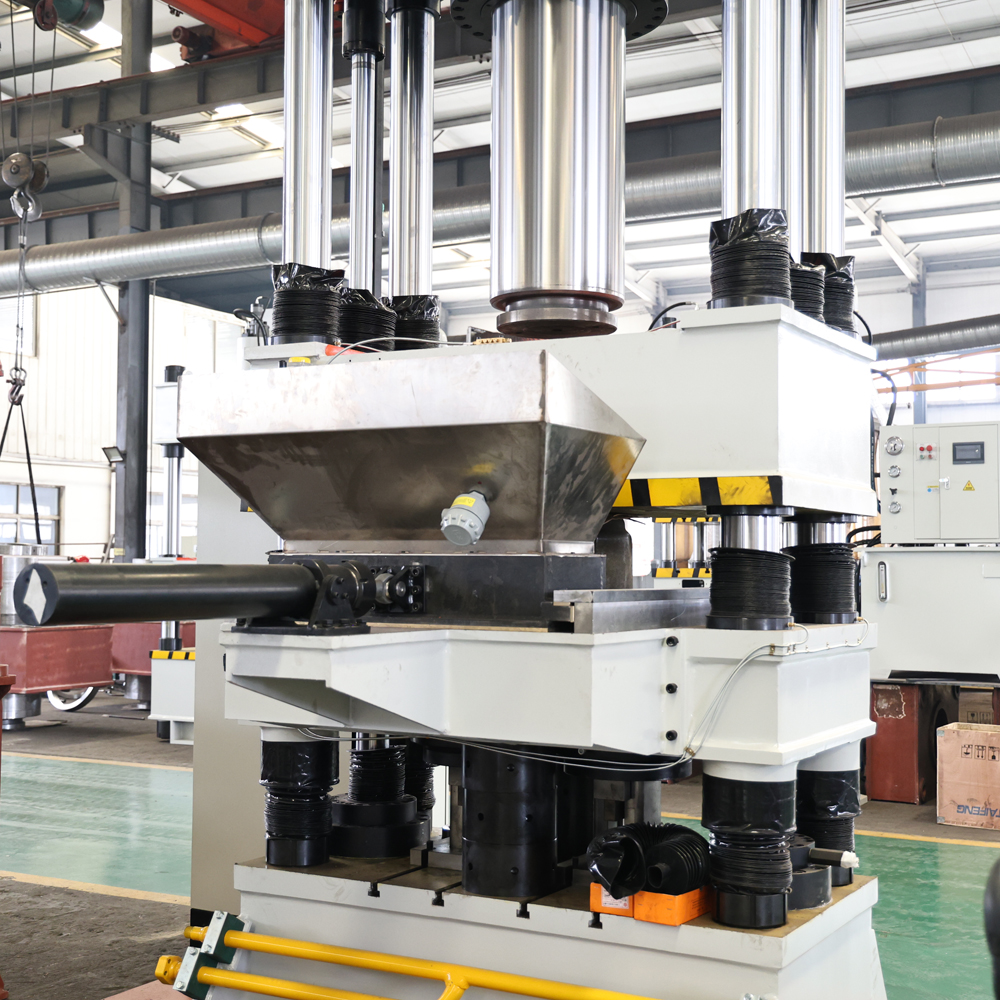

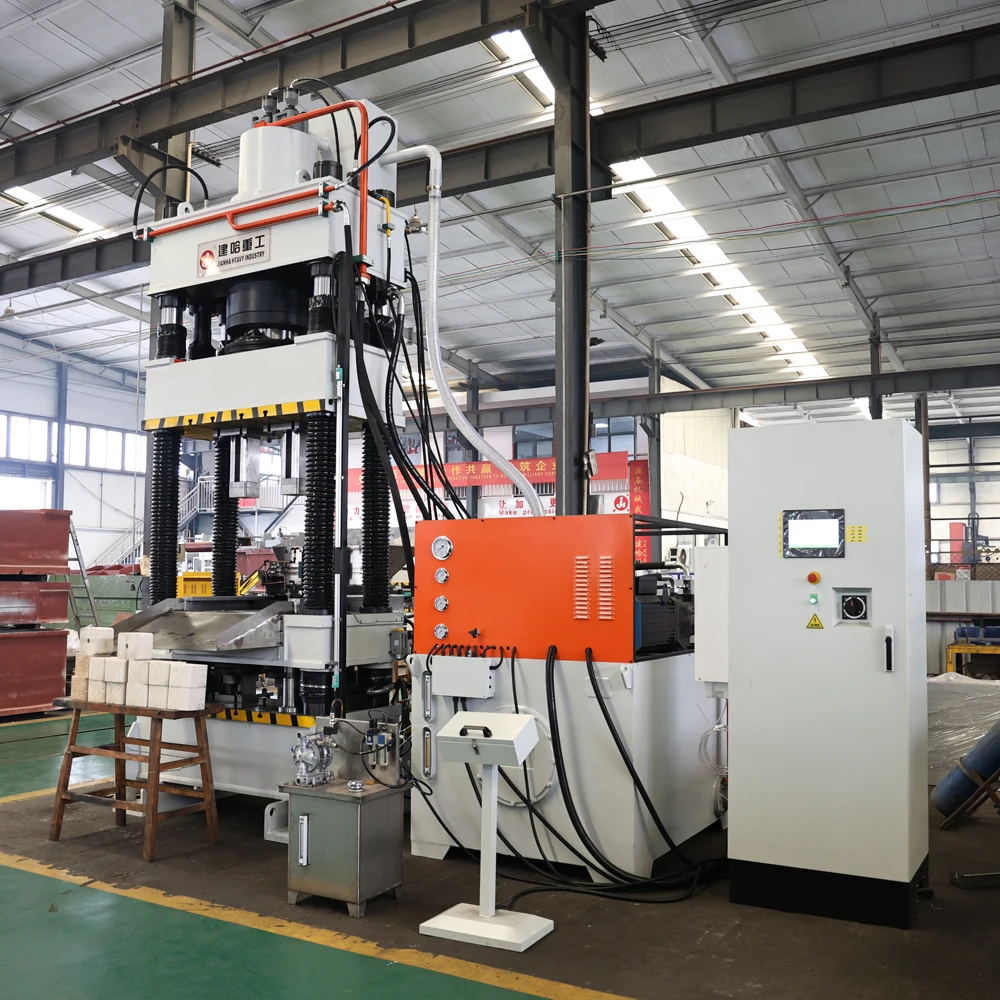

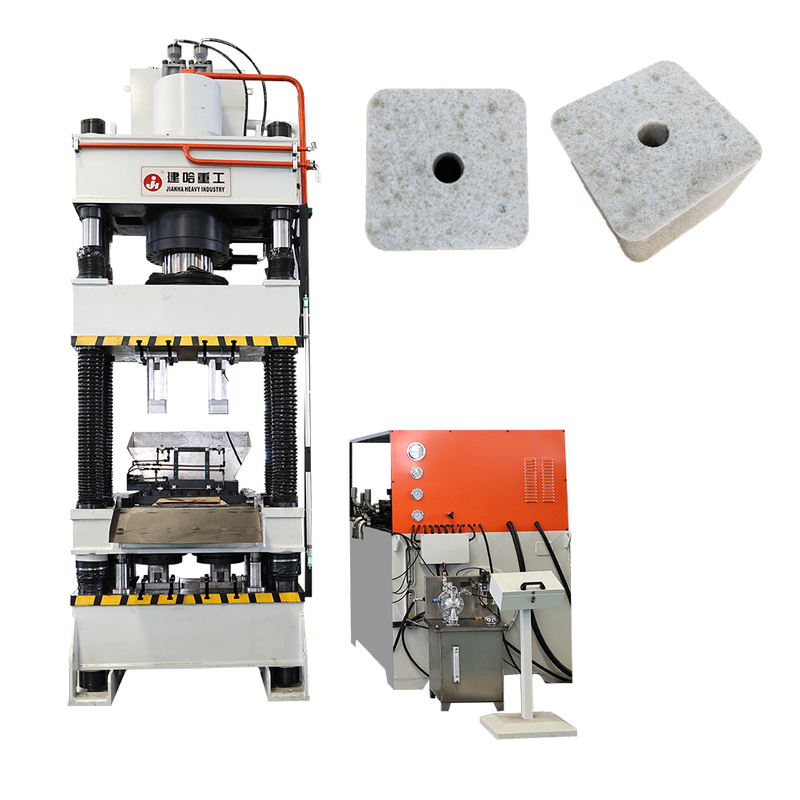

Y79-330T Four-column Four-beam Hydraulic Press Machine Automatic Servo Motor PLC Controlled for Multifunctional Salt Brick Forming

The Y79-330T 4-Column 4-Beam Hydraulic Press is a purpose-built industrial solution designed for high-volume, precision production of salt bricks and mineral blocks. Powered by a 330-ton servo-driven hydraulic system, it delivers uniform pressure distribution to ensure dense, crack-free finished products with consistent dimensions, meeting strict industrial quality standards.Equipped with an advanced PLC control system and automatic feeding mechanism, this press minimizes manual intervention, reducing labor costs and boosting production efficiency by up to 25%.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button
  • Y79-330T

  • JIANHA BAOFA

Product Description

The whole machine adopts a four-column frame structure and is composed of a main engine, a hydraulic pump station and an electric control system. The nominal pressure is up to 3300 kN, the liquid working pressure is 25 MPa, the salt brick of 2-25 kg can be pressed, the forming density is uniform, the salt brick is not easy to break, and the requirement of animal husbandry on the hardness of the salt brick is met. It is equipped with electric contact pressure gauge to realize overpressure protection. The pressure and stroke can be flexibly adjusted according to the formula and specifications of salt bricks. It supports two forming

processes of constant pressure and constant stroke. It can also customize non-standard moulds to produce salt bricks of different shapes (square, round and special-shaped). It is mainly used in the production of salt bricks for cattle, sheep and other animal husbandry, and can press composite salt bricks added with minerals and vitamins to meet the mass production needs of large-scale farms, feed processing plants and salt brick production enterprises. In addition to salt bricks, it can also be used for the pressing of small block products such as powder metallurgy and refractory materials. One machine can be used for multiple purposes and improve the utilization rate of equipment.


Product Details

Servo motor

Fast dynamic response: The response time from standstill to rated speed is usually within tens of milliseconds
wide adaptability: that parameter can be flexibly adjusted through a servo drive, different load characteristics are compatible, and three control modes of position, speed and torque are supported

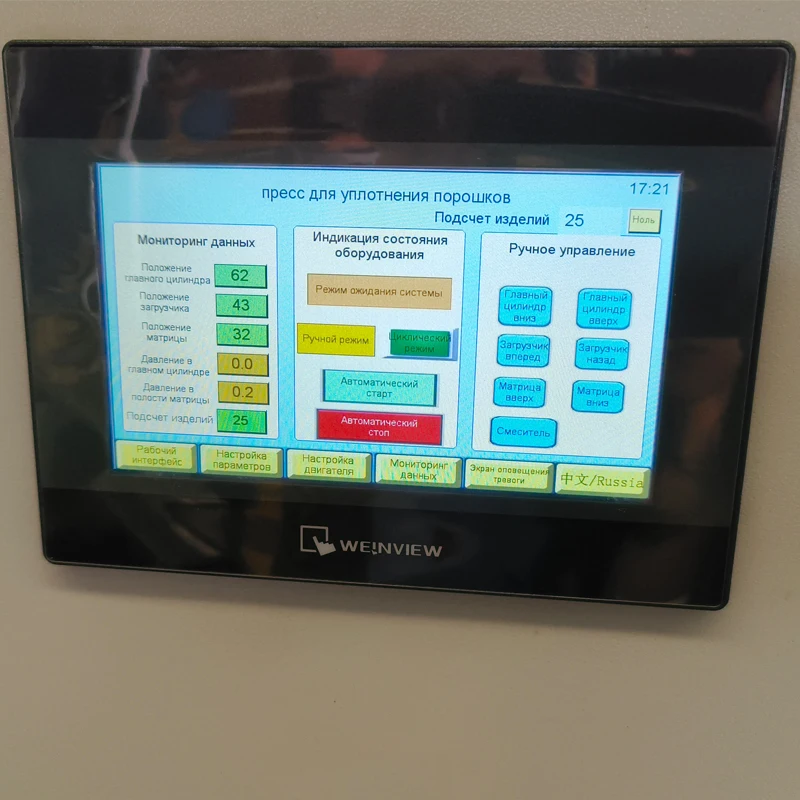

Smart Line (HMI Touchscreen)

With the cooperation of PLC and other control units, human-computer interaction is realized for equipment status monitoring, parameter setting, manual/automatic control, etc. Support visual operation, simplify equipment control process, and improve operation efficiency and accuracy.

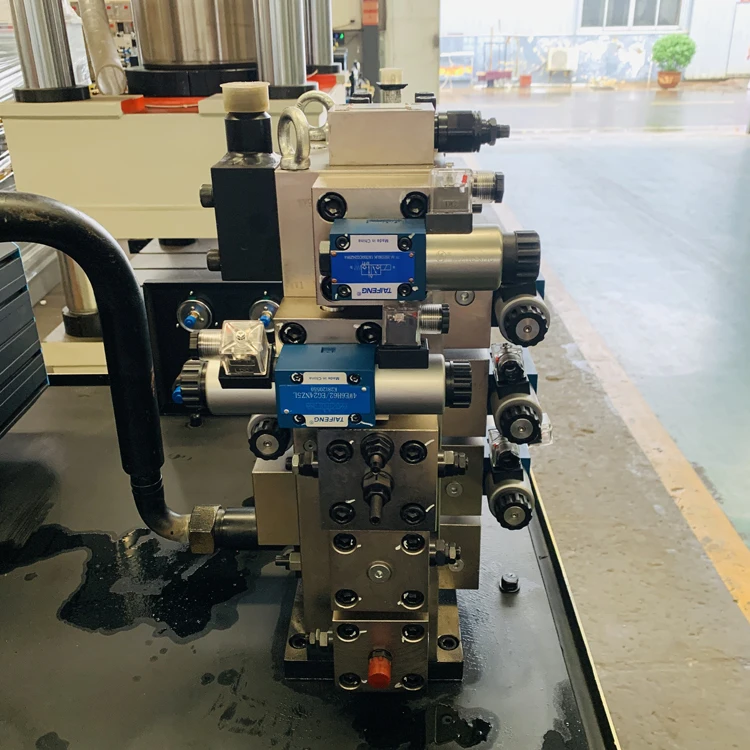

Hydraulic integrated valve block

As the control core of the hydraulic system, it is responsible for the adjustment of pressure, flow and direction, and adapts to
the working conditions of large flow and medium and high pressure. Compared with the decentralized valve group, it has smaller volume and lower leakage risk, and is often used for equipment with high space and reliability requirements.

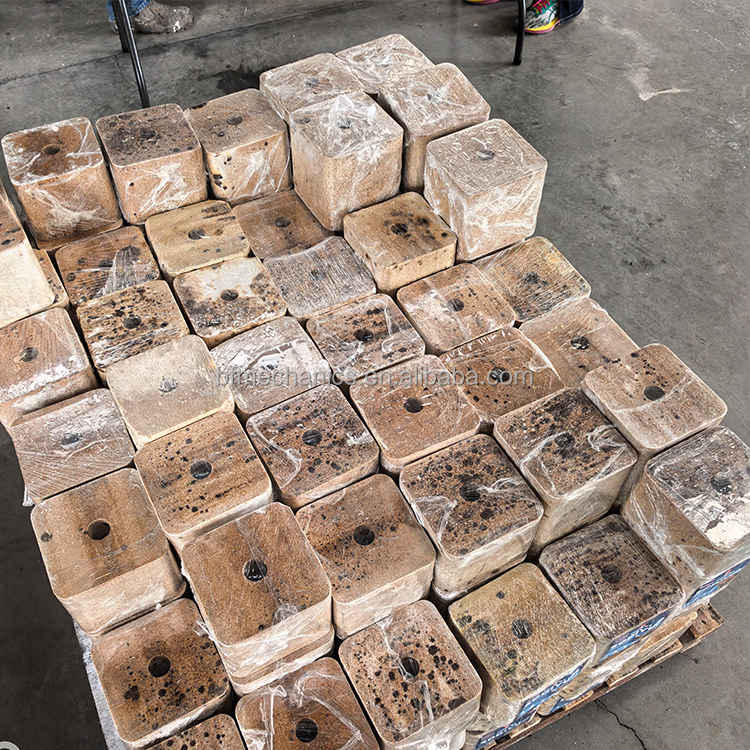

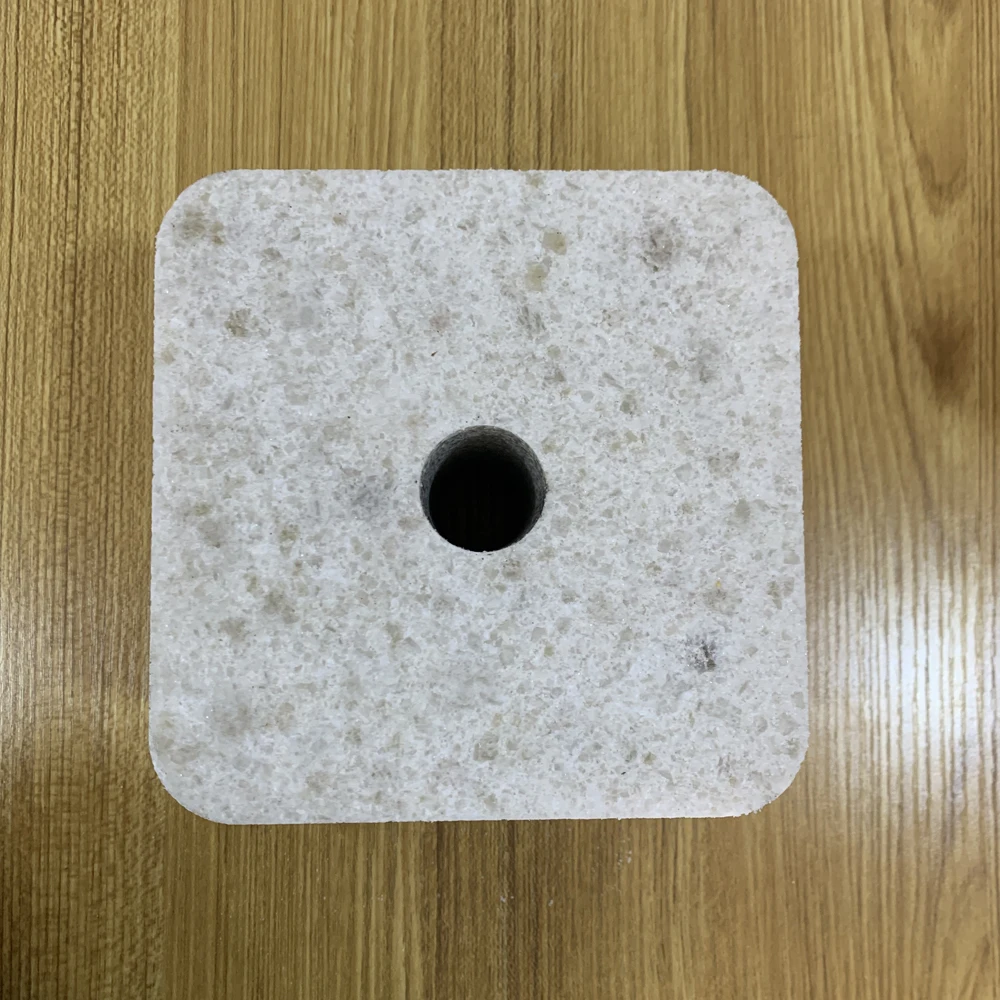

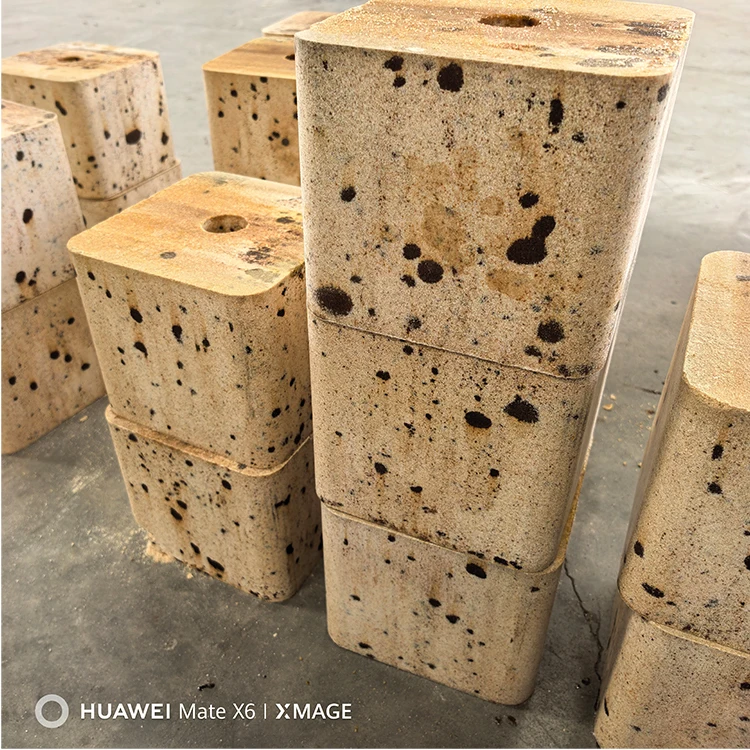

Finished Product



CE Certification


Manufacturing Technique

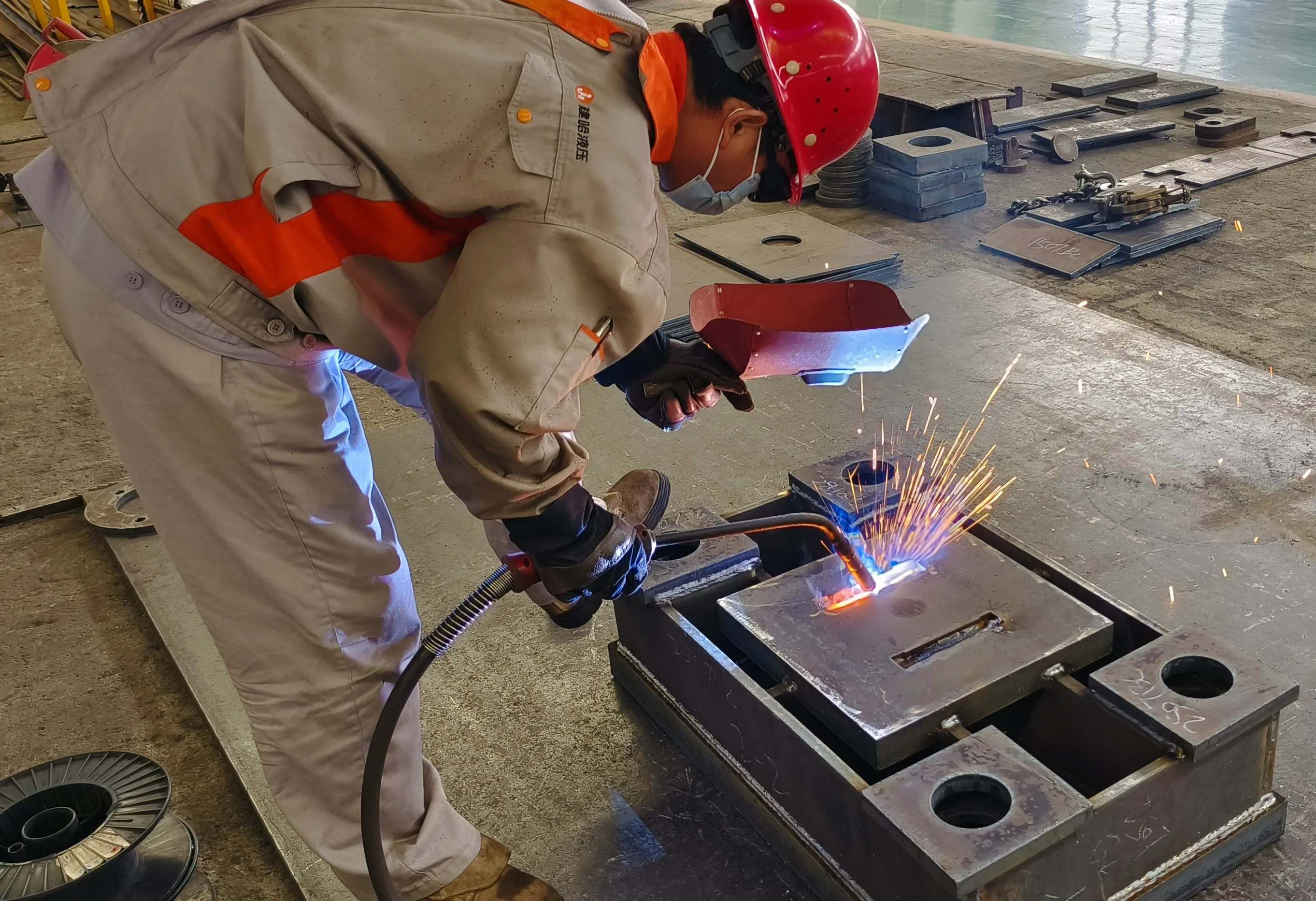

Rivet welding

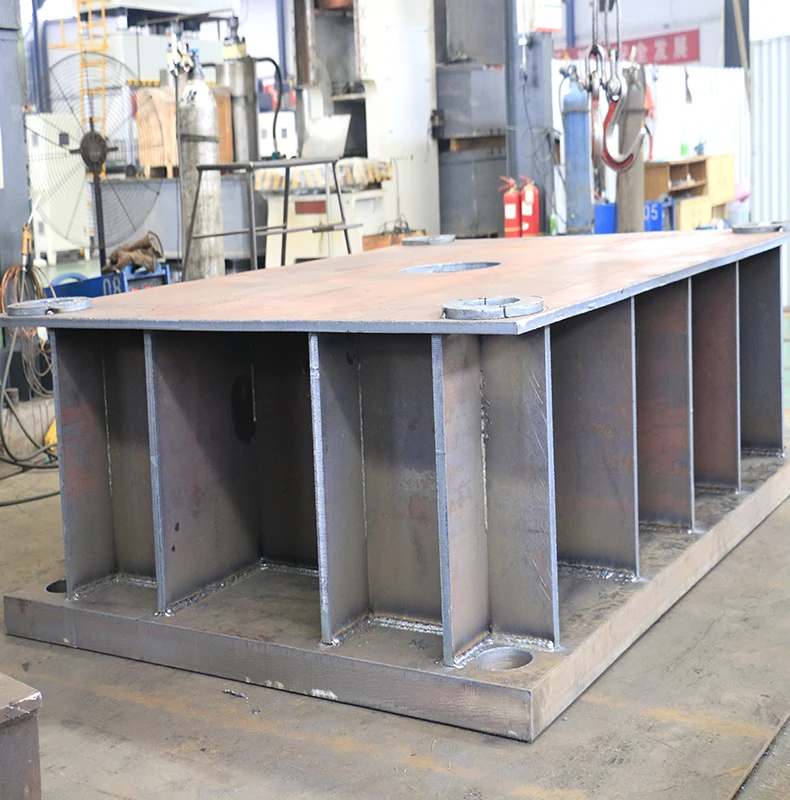

We adopt riveting welding (riveting + welding combination process), which has the advantages of high connection strength, good sealing, taking into account the impact resistance of riveting and the integrity of welding, adapting to complex structures and strong durability

Mortise and tenon joint

It is a traditional Chinese way of joining.Tenon and mortise structure uses the design concept of dislocation, limitation and avoidance to make the components flexibly combined to achieve the effect of "firm but not solid".

Integral cylinder

The integral piston rod pro-vides better sealing perfor-mance, tighter connection,and reduced leakage.Pro-vides higher rigidity and sta-bility. Makes the system runstably and reliably
Why Choose Us

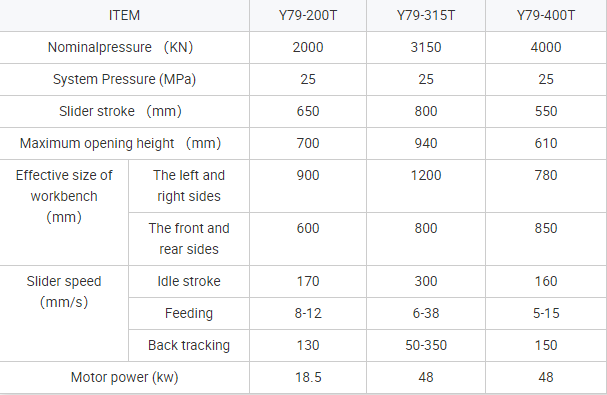

Specification

参数

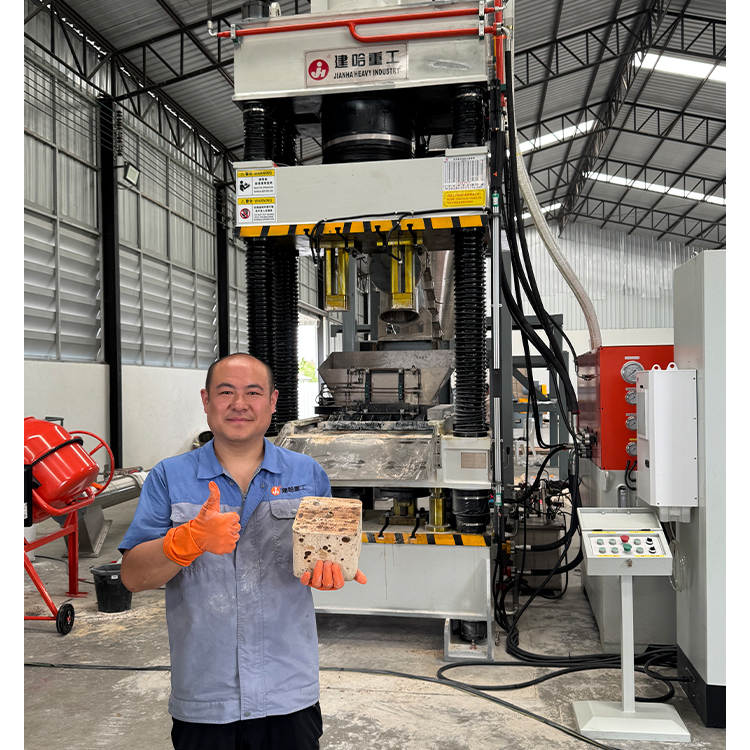

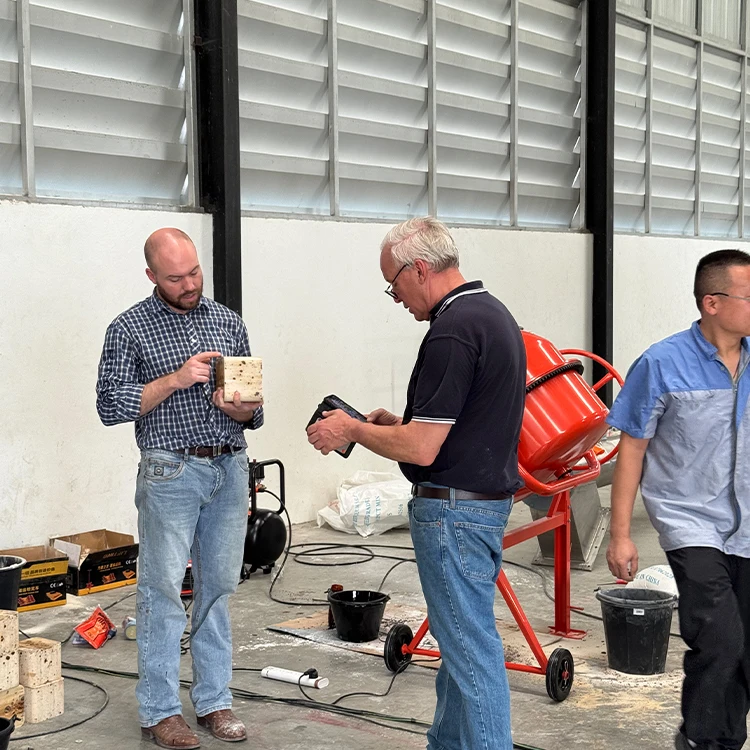

Customer installation site

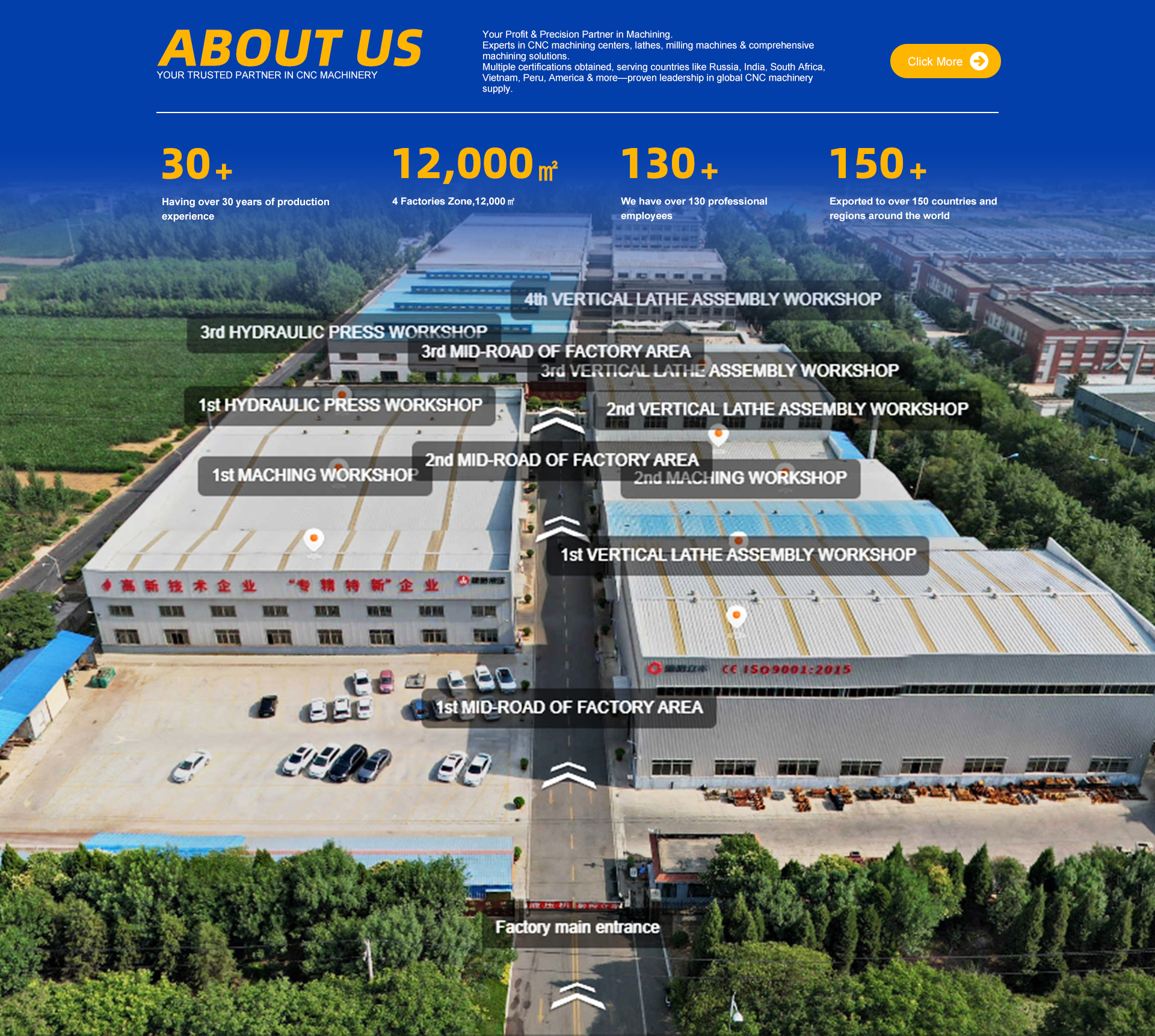

Company Profile

Shandong Jianha Baofa Heavy Industry Machinery Co., Ltd.

Our factory is located in Tengzhou City, Shandong Province, China, which is a leading center for hydraulic press manufacturing in China. It was established in 1996,has a factory area of over 7,000 square meters, with fixed assets exceeding 30.1 million yuan and a staff of over 106 people, including 36 R&D technicians. We firmly believe that only by constantly innovating can enterprises achieve sustainable development; and only by grasping the needs of customers can they lead the industry trend.  Our main ODM customized products include hydraulic presses, rotating shaft presses, die-casting machines, CNC lathes, etc. The annual export volume exceeds 300 units, and the export business covers more than 60 countries. We always adhere to the concept of "quality first and reputation foremost", continue to develop and achieve significant progress, and have won a good reputation among customers.


Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


FAQ

Q1 How can I choose the most suitable machines ?

A1 Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

Q2 What's your main products of your company?

A2 We specialized in all kinds of machines ,such as Hydraulic Press Machine,CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

Q3 Where is your factory located? How can I visit there?

A3 Our factory is located at 1299 Tengfei Road, Tengzhou City, Shandong Province, China. You are warmly welcome to visit.

Q4 What's the Payment Terms ?

A4  T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable L/C at sight .
