CE Export Customizable 630 Axle Repair Hydraulic Press for Dismantling And Assembling Train Wheels Machine

CE Export Customizable 630 Axle Repair Hydraulic Press for Dismantling And Assembling Train Wheels Machine

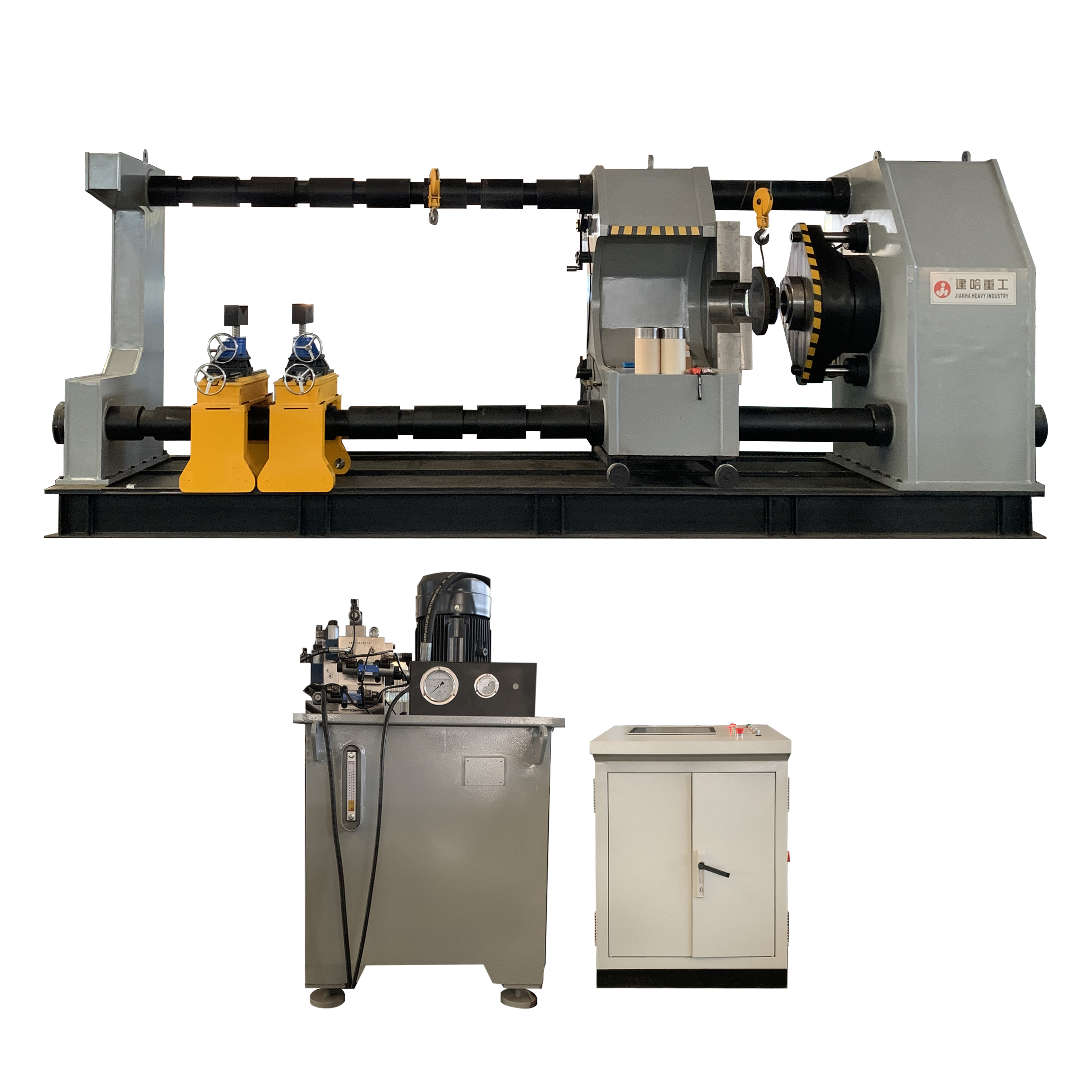

630 horizontal axle pressing machine:

Adopts horizontal structure design, and realizes 630 tons of axial pressure output through hydraulic pump drive piston, which is specially customized for railway wheelset bearing pressing and disassembly operations
Integrated PLC control system and touch screen interface, support digital adjustment of pressure and stroke parameters, and ensure that the concentricity of wheel axle assembly meets railway technical standards. Equipped with infrared hand guards and emergency lift-up buttons to ensure the safety of large workpieces
The overall cast steel body and U-shaped worktable design are suitable for accurate positioning of shaft parts and will not deform for long-term use.
High-precision force sensor monitors pressure in real time, supports bearing cold pressing assembly and wheelset interference control.
Replaceable press-load/unloading head modules to realize quick disassembly and maintenance of train axles.
Compared with traditional manual pressing, the automated process significantly shortens the operation cycle and significantly improves the efficiency of a single operation

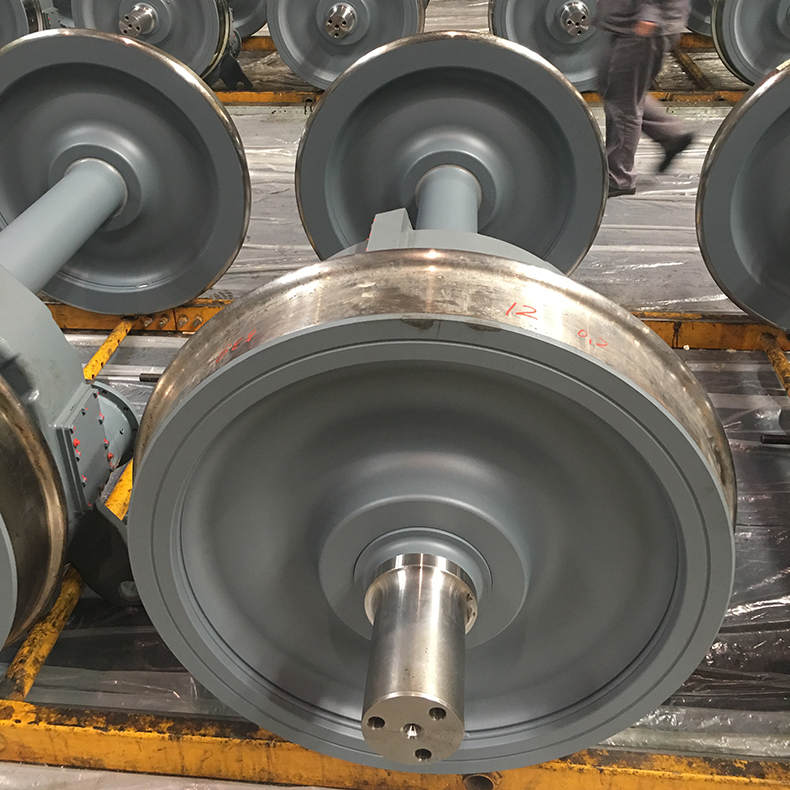

This machine is widely suitable for cold-pressing assembly of truck rolling bearings and axles to ensure the quality of wheelset assembly
It supports the disassembly and re-pressing of shaft sleeve parts, and is suitable for maintenance operations in internal combustion engines, motors and other industries.
Adapt to the precision pressing needs of large workpieces such as drive shafts and drive axles.

Quantity:
Availability:





Inquire

Model:
Y79-630T
Brand:
JIANHABAOFA

Product Description

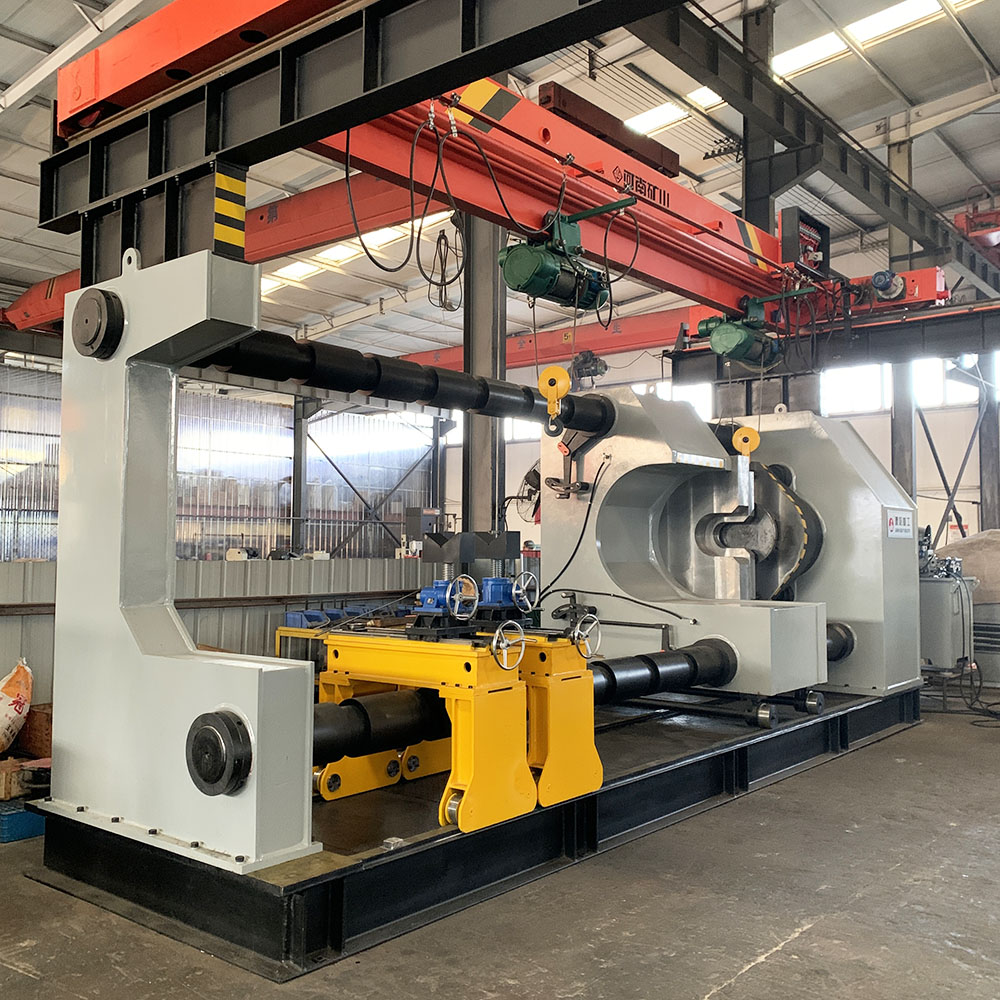

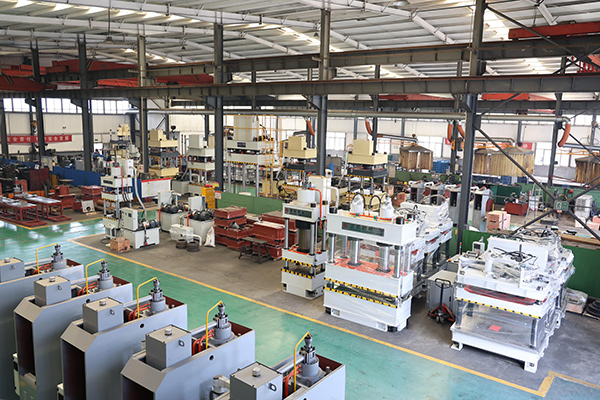

FACTORY SIDE

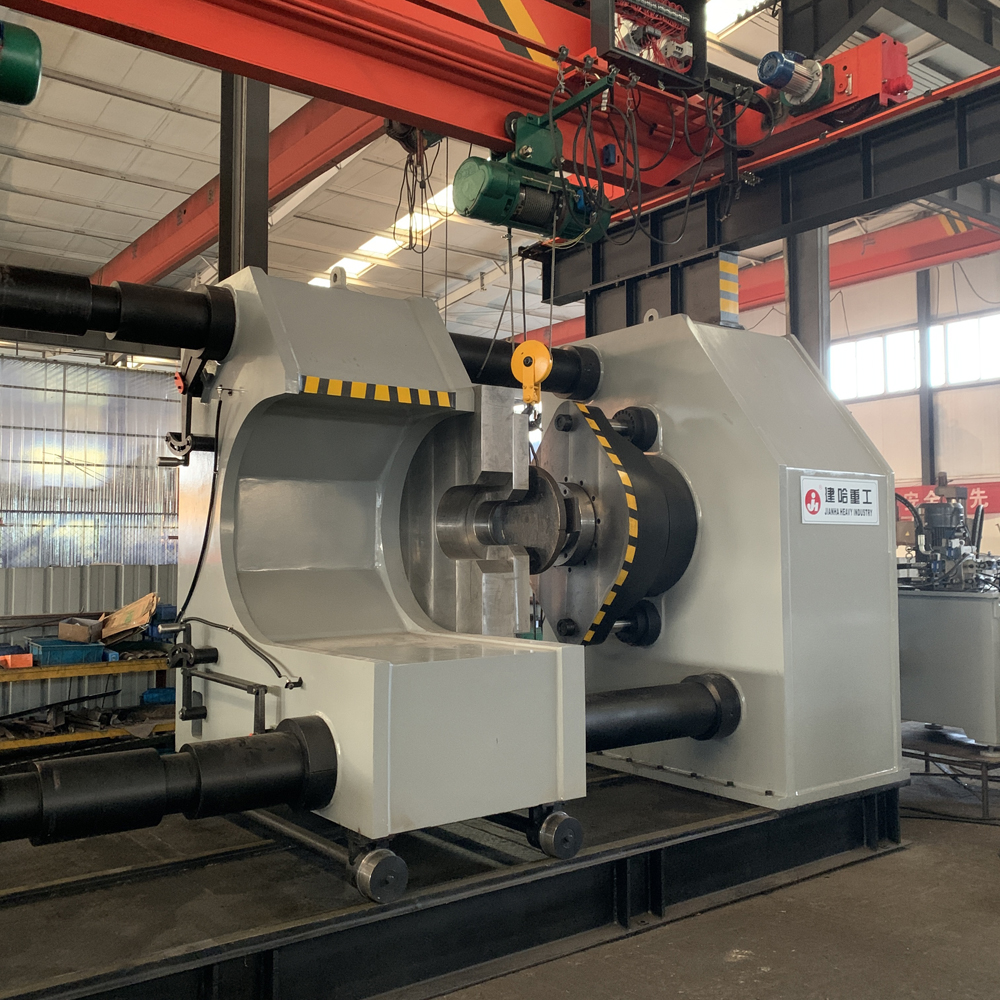

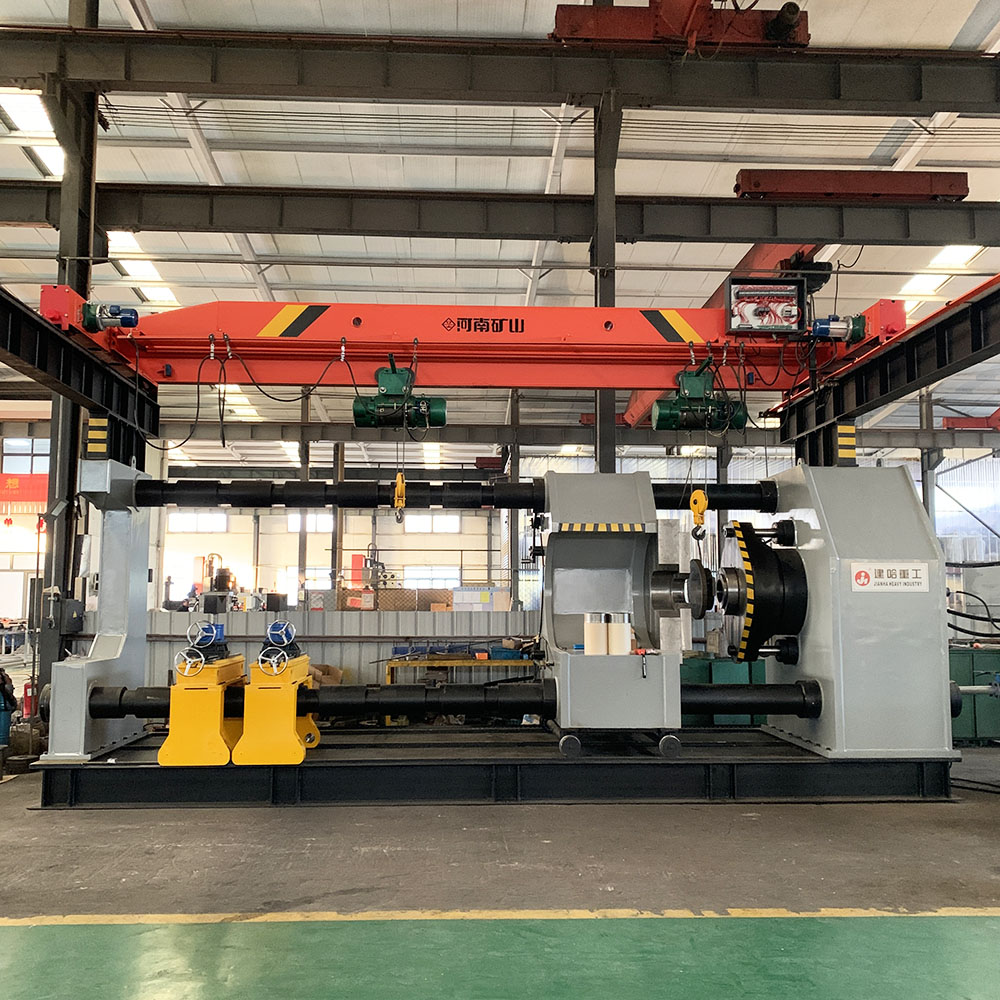

630 Ton horizontal axle pressing machine

Adopts horizontal structure design, and realizes 630 tons of axial pressure output through hydraulic pump drive piston, which is specially customized for railway wheelset bearing pressing and disassembly operations

Integrated PLC control system and touch screen interface, support digital adjustment of pressure and stroke parameters, and ensure that the concentricity of wheel axle assembly meets railway technical standards. Equipped with infrared hand guards and emergency lift-up buttons to ensure the safety of large workpieces

The overall cast steel body and U-shaped worktable design are suitable for accurate positioning of shaft parts and will not deform for long-term use.

High-precision force sensor monitors pressure in real time, supports bearing cold pressing assembly and wheelset interference control.

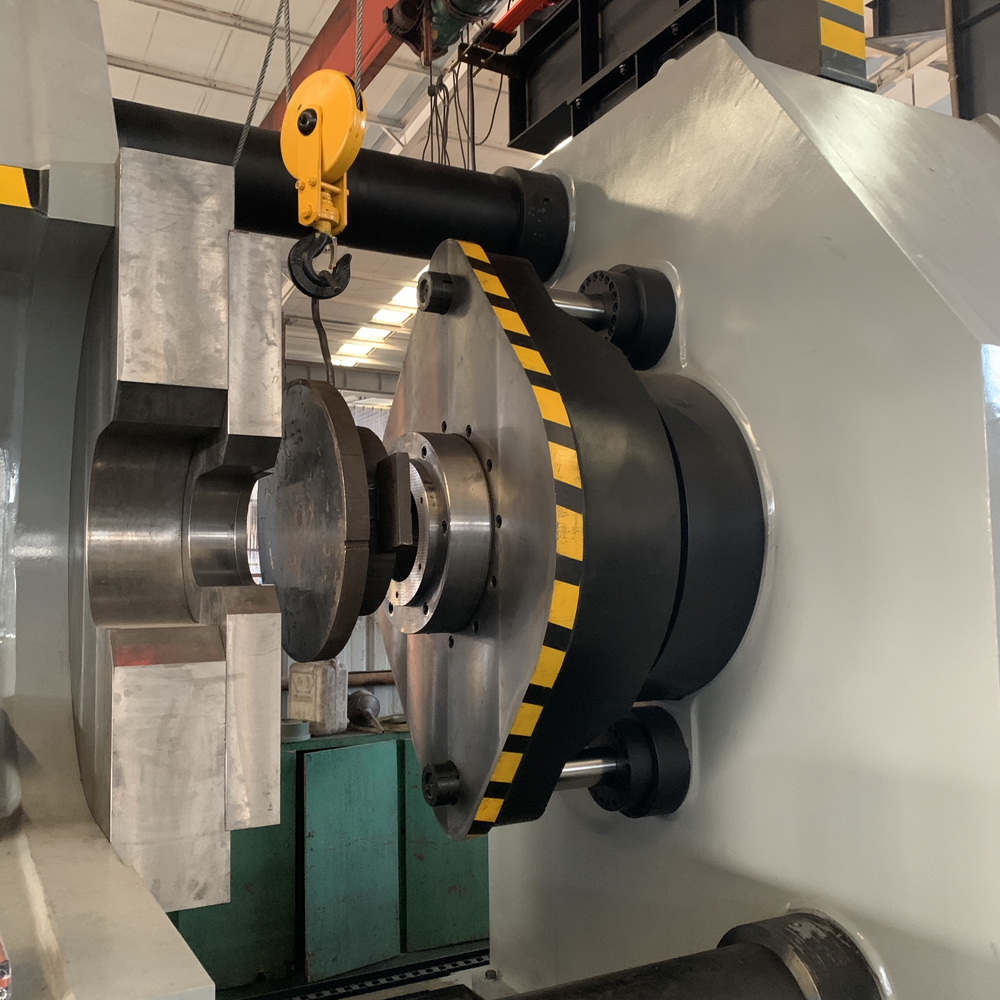

Replaceable press-load/unloading head modules to realize quick disassembly and maintenance of train axles.

Compared with traditional manual pressing, the automated process significantly shortens the operation cycle and significantly improves the efficiency of a single operation

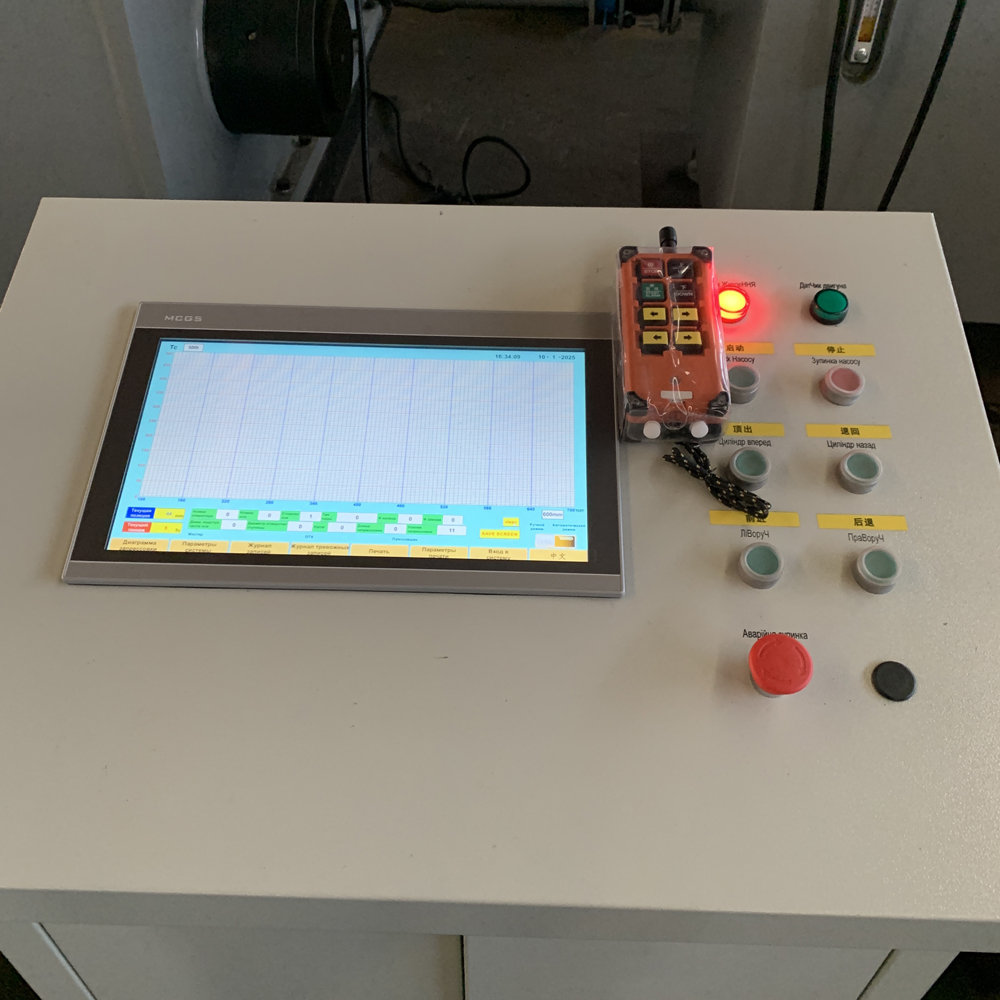

15.6-inch HD LED display, position and pressure synchronous display, convenient real-time monitoring of the operation process.

By moving the movable beam, the length of the embedded workpiece can be changed.

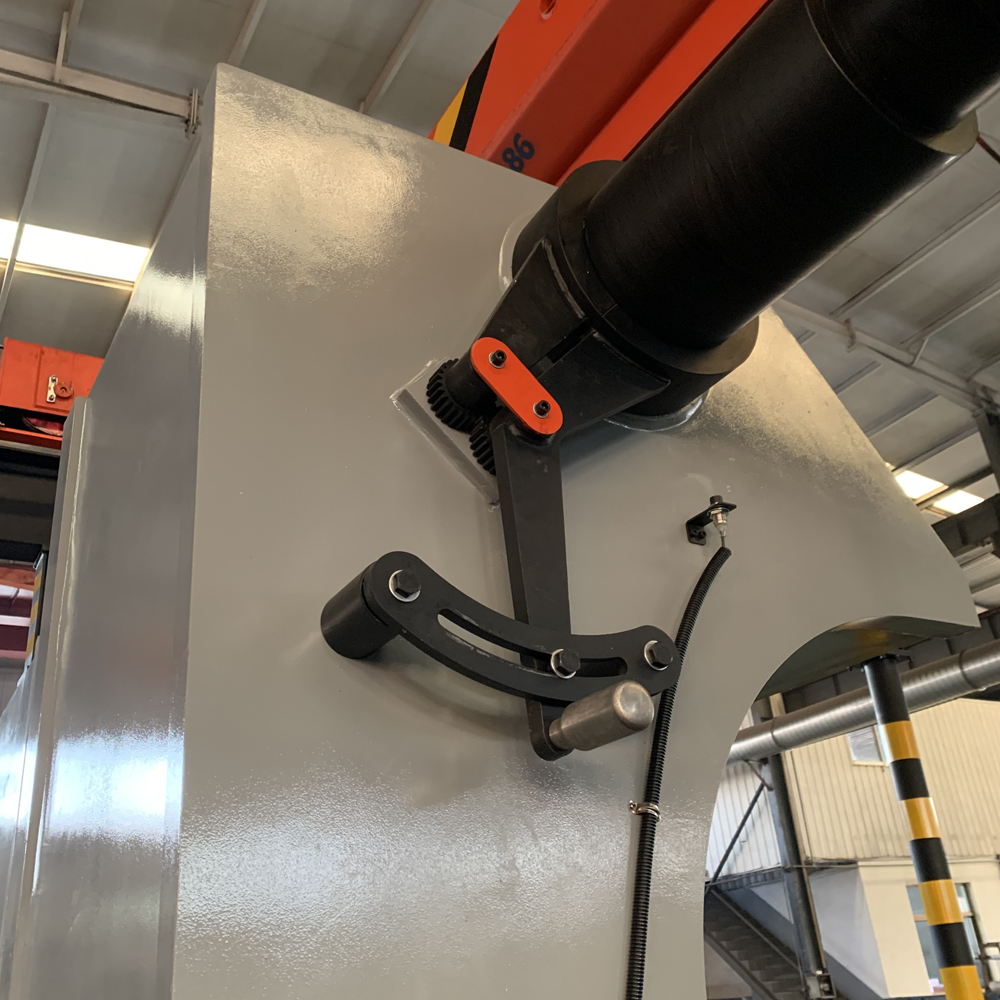

Safety device: positioning clasp,it must be completely detached from the tie rod when the movable beam is moving.

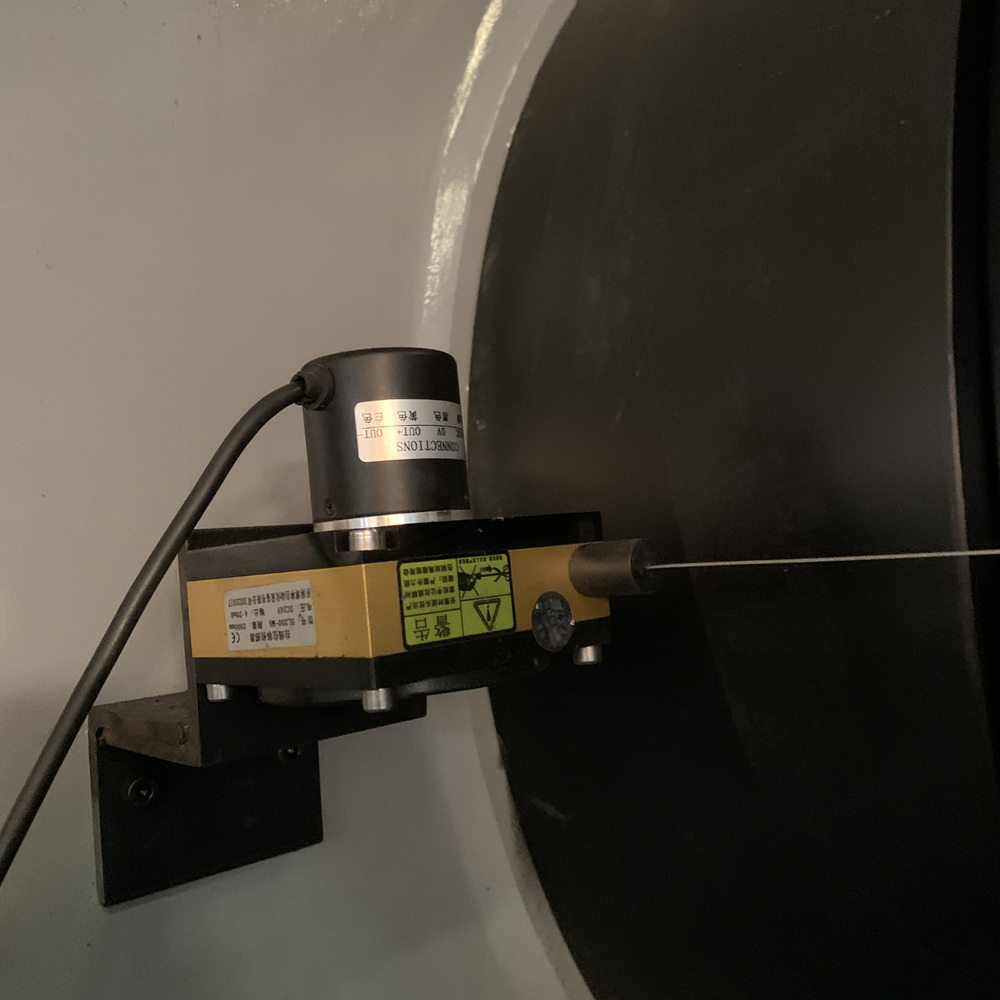

Displacement sensor

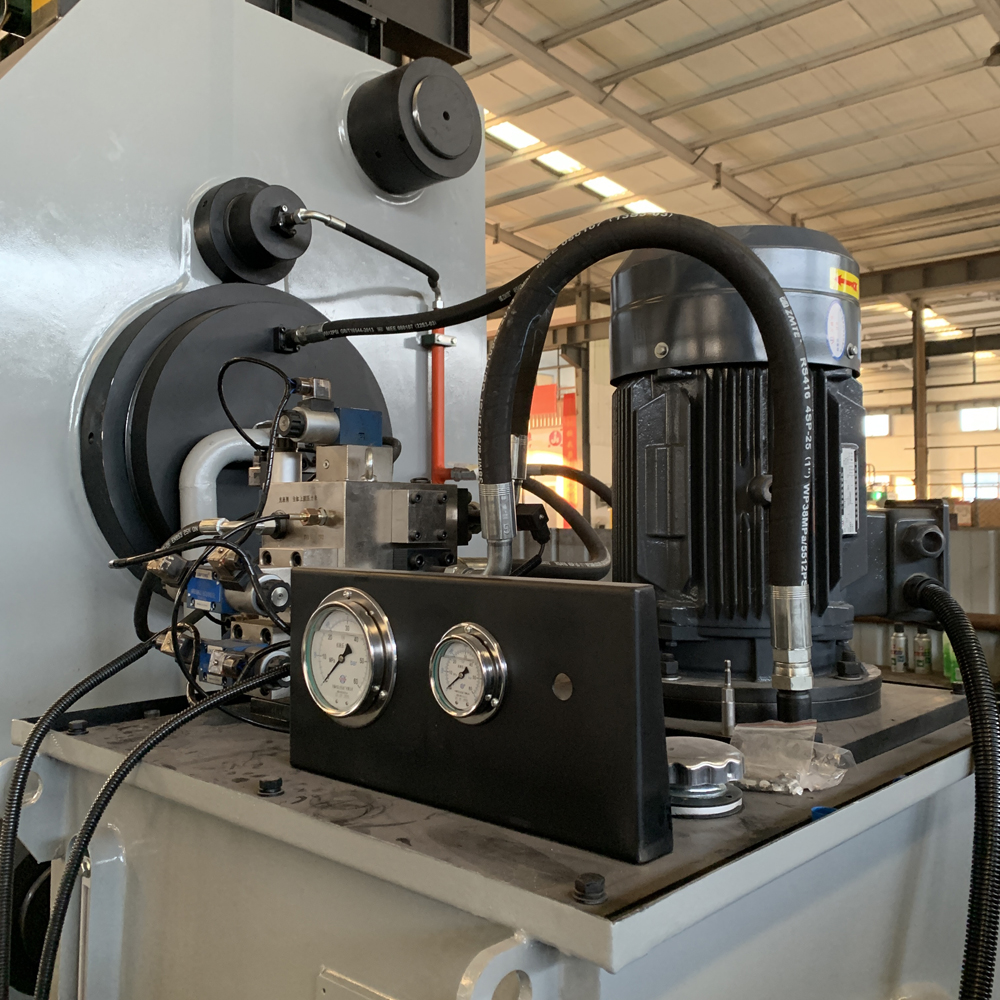

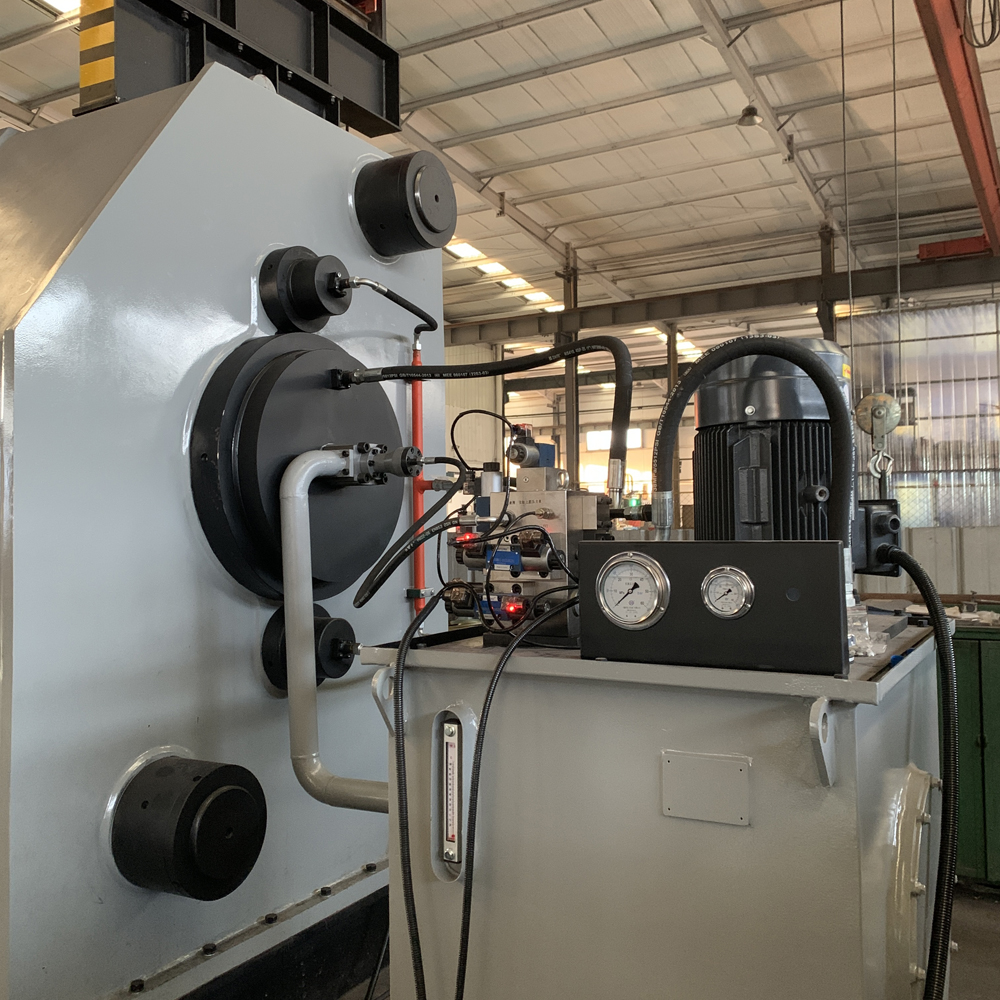

The hydraulic pump station part consists of high pressure pump and control element , the value of the pressure can be changed by

adjusting the relief valve.

PRODUCTS

CE CURTIFICATE

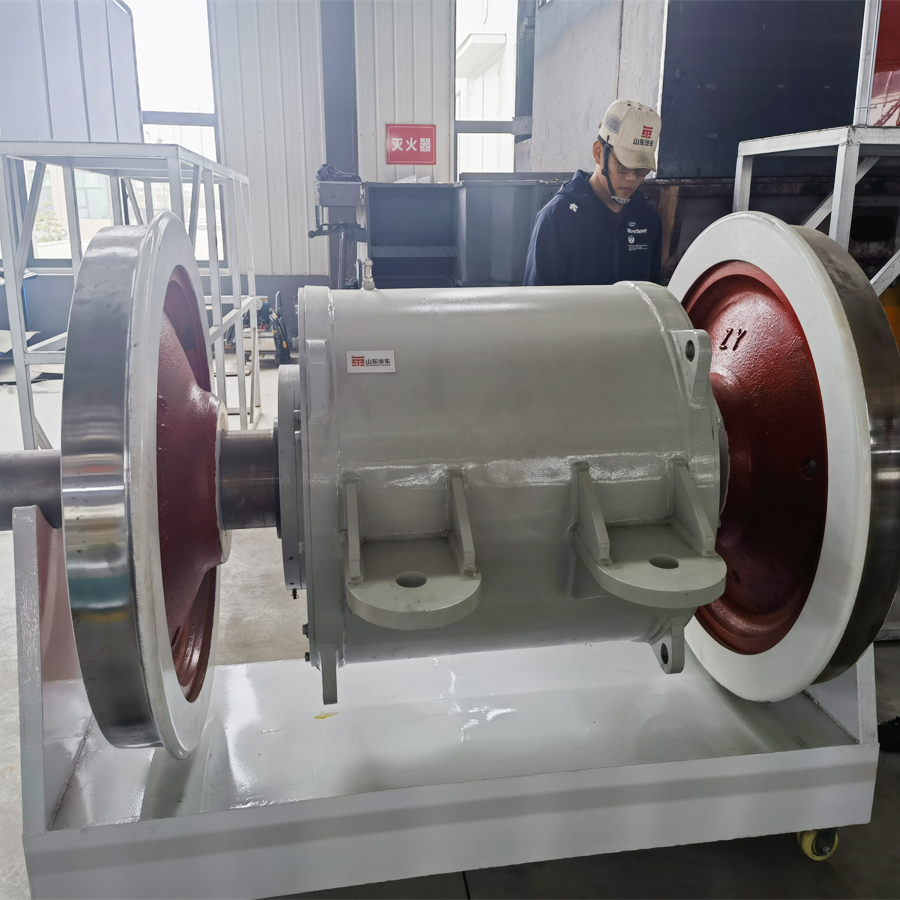

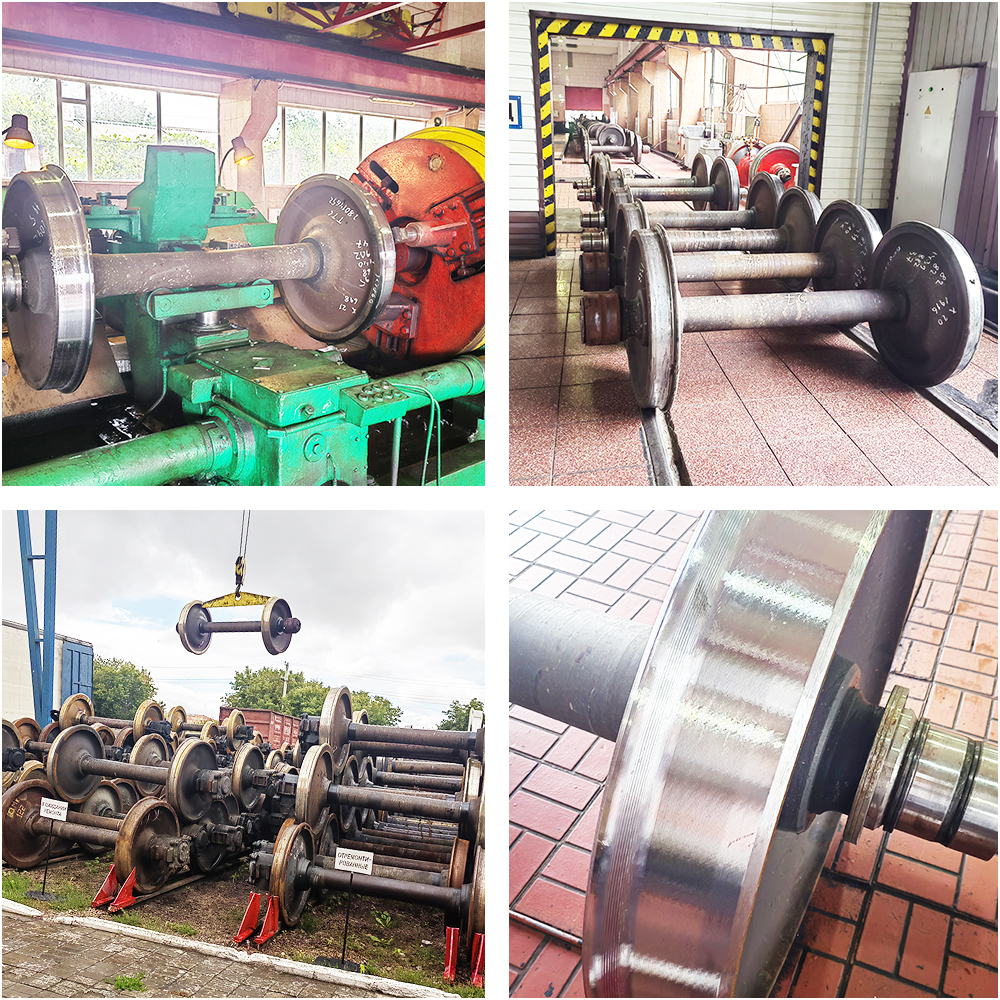

CUSTOMER PHOTOS

Customer1

TECHNICAL PARAMETER

		315T	500T	630T
Nominal thrust of indenter	kn	3150	5000	6300
system pressure	Mpa	25	25	25
Effective stroke of head	mm	700	500	1000
Maximum insert wheel diameter	mm	1400
Maximum insert wheel diameter for horizontal entry	mm/s	1100	1300
Main motor Power‍	mm	15	18.5	25.2
Plunger Pump	L		120	120
Through shaft U-form	mm	200

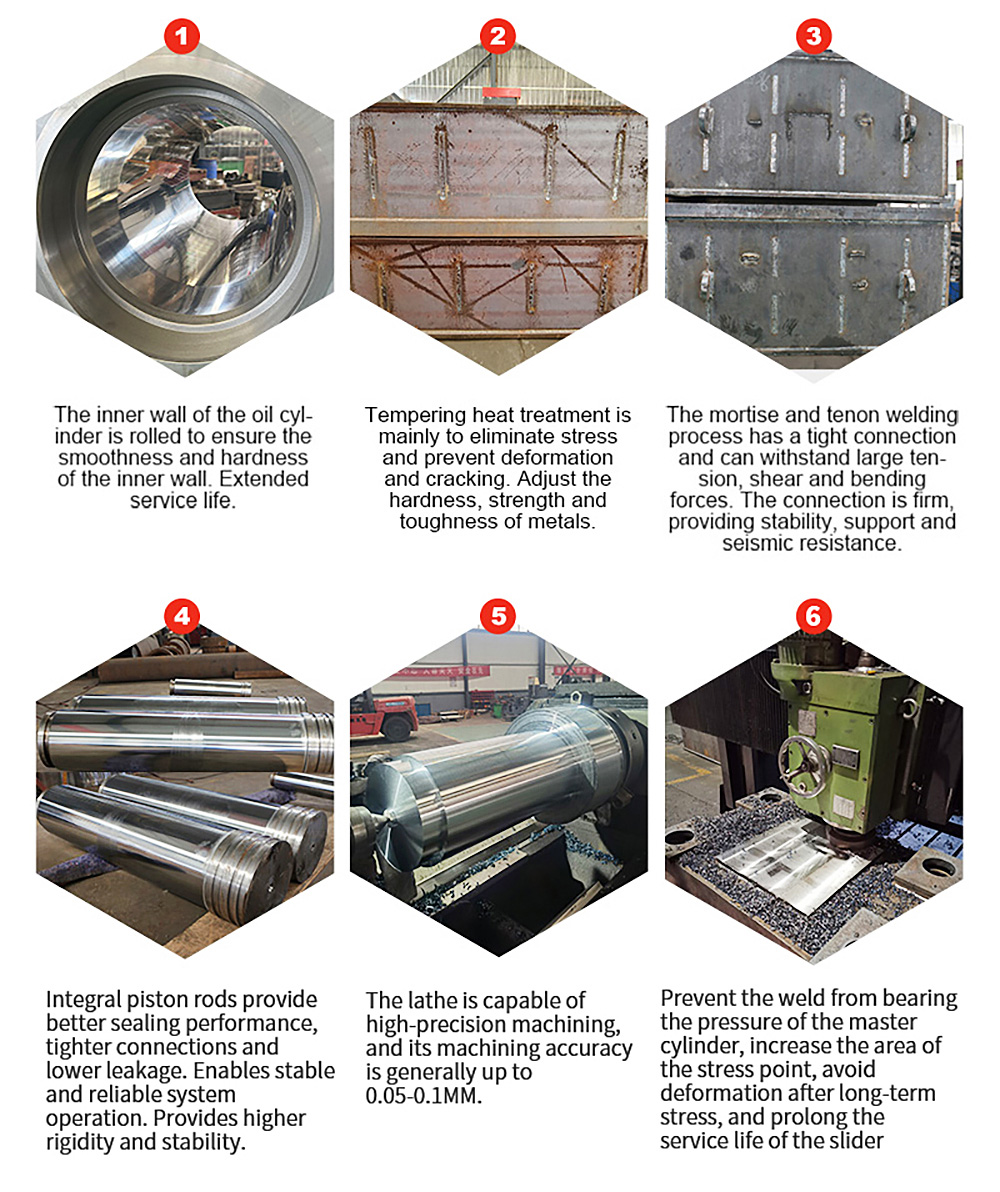

WELDING TECHNOLOGY

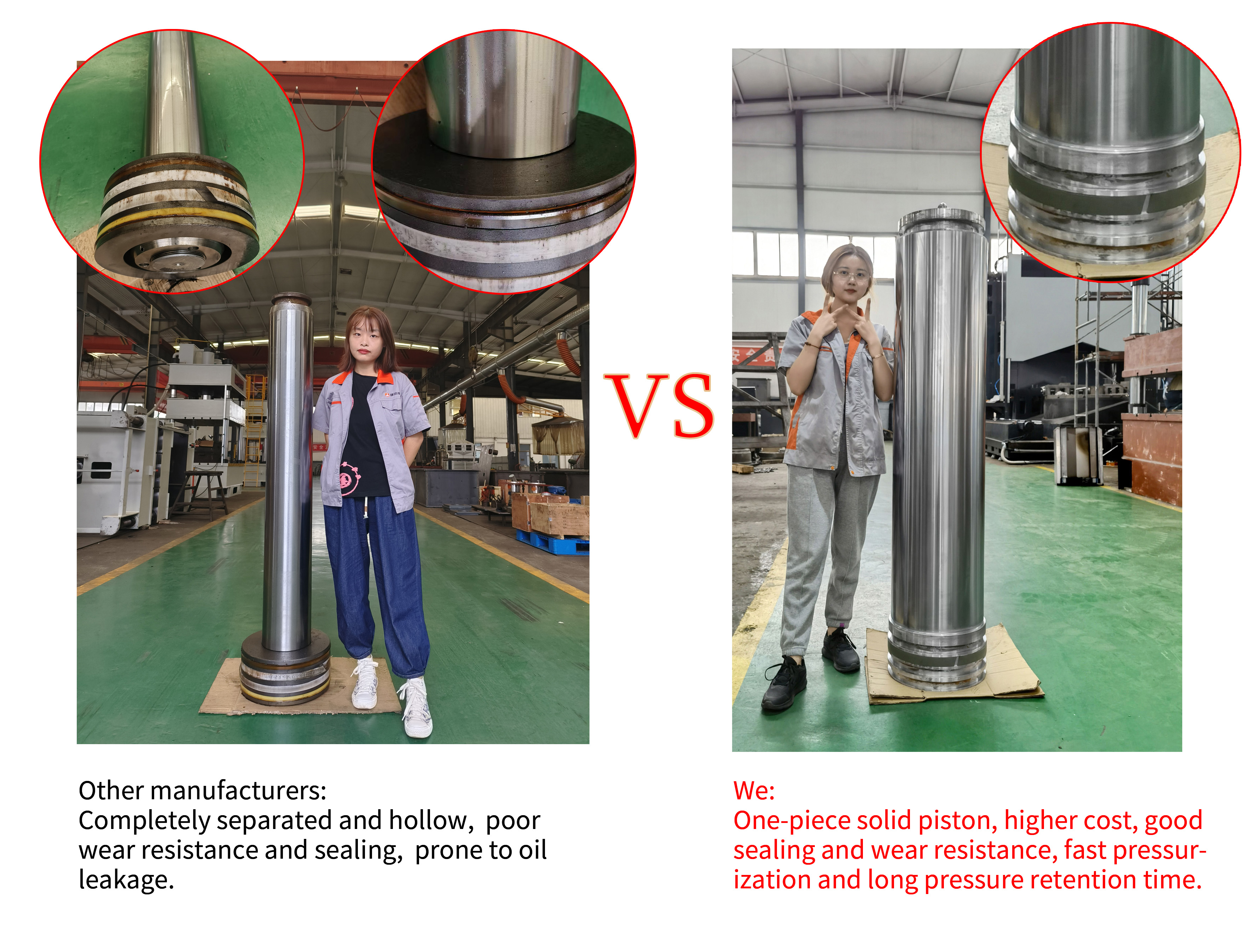

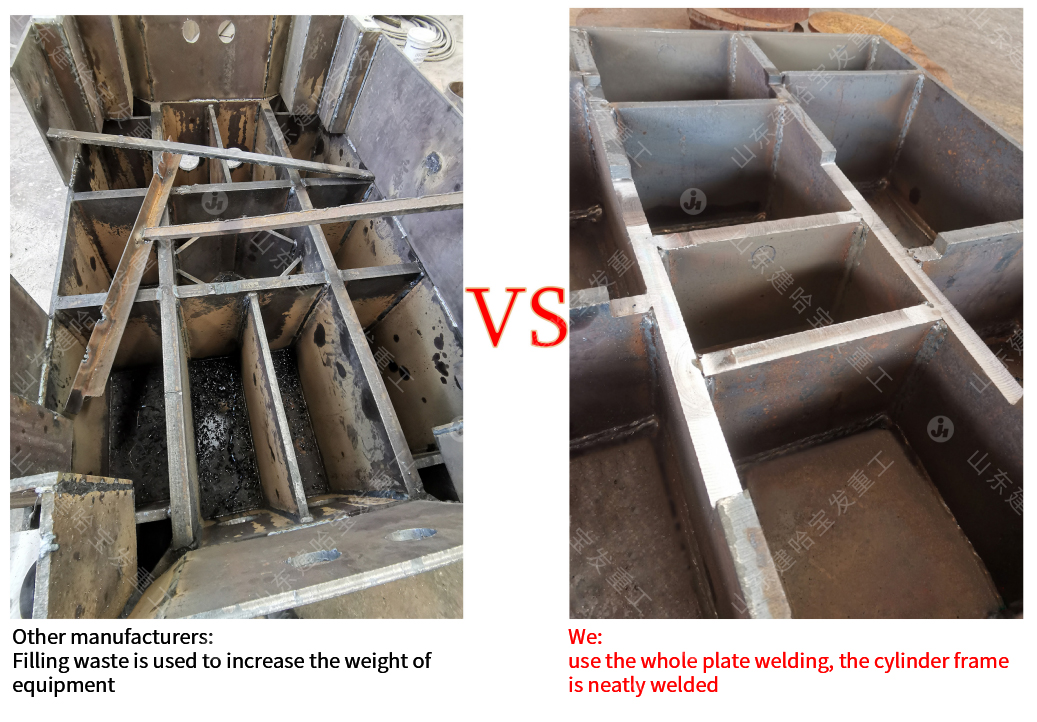

DIFFERENT TO OTHER MANUFACTURER

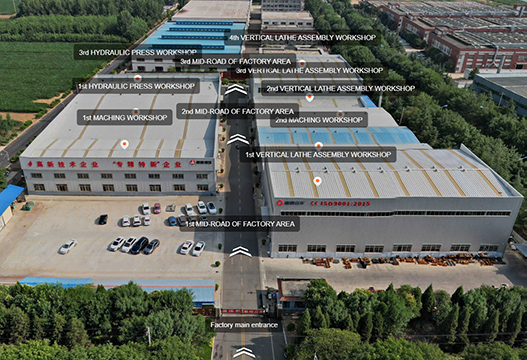

COMPANY PROFILE

Shandong Baofa Intelligent Equipment Co., Ltd.

The company is an integrated enterprise of R&D, design, production and sales led by high-quality hydraulic presses and automobile assembly equipment processing machinery. We always believe that only by continuous innovation can enterprises develop permanently, and only by grasping the needs of customers can they lead the industry trend.

Our mainly featured ODM customized products are Hydraulic Press Machine, Swivel Axis Press Machine, Hydraulic Punching Machine, Die casting machine, CNC Vertical Lathe, Slant bed CNC Lathe, Flat bed CNC Lathe, large gantry machining center and more than 300 sets export quantity every year is the best affirmation of these products. And has CE，AAA and other relevant international certifications.

The export business covers more than 60 countries，exported to the United States, Russia, Australia, Mexico, Ukraine, Turkey, Pakistan, South Korea, Kazakhstan, Egypt, Saudi Arabia, Kyrgyzstan, Kuwait, Romania, Sloveni, Finland, Japan, South Korea，etc. After years of unremitting efforts, the company has been continuously developing and growing.

Accumulating many years of experience and technology, we keep constant development and make great progress with the statement of "Quality is king, credibility is paramount". And win good reputation among our customers.

Packaging & Shipping

Package and shipping:

Packaging according to your requirements to ensure the stability and safety of the product during transportation

1.The four column metal stamping press machine surface with anti-rust treatment,
2.The four column metal stamping press machine inner layer of plastic waterproof packaging,
3.The four column metal stamping press machine outer layer of thick wood or steel frame fixed,And then use a synthetic board package. Combined container transport, or separate container transport

FAQ

1. who are we?
We are based in Shandong, China, start from 2022,sell to Mid East(30.00%),Western Europe(23.00%),Southern Europe(23.00%),Eastern Asia(15.00%),Northern Europe(9.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us Hydraulic presses,

presses, C-type hydraulic presses, powder molding hydraulic presses, H-type hydraulic presses, four-column presses, CNC vertical lathes

4. Why buy from us instead of other suppliers?

Our company's design and management are networked, CADCAPP auxiliary design, we always adhere to the quality first-service first-integrity first corporate goal, the company cooperates with a number of large state-owned enterprises,

5.What services we can provideAccepted delivery terms: FOB, CFR, CIF, EXW, CIP, FCA, CPT; Accepted payment currencies: US Dollar, Euro, Japanese Yen, Canadian Dollar, Australian Dollar, Hong Kong Dollar, Pound Sterling, Renminbi, Swiss Francs; Accepted methods of payment: Bank Transfer, Letter of Credit, Bill of Lading, MoneyGram, Credit Card, PayPal, Western Union, Cash, Trust; Languages spokenLanguages spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italin
